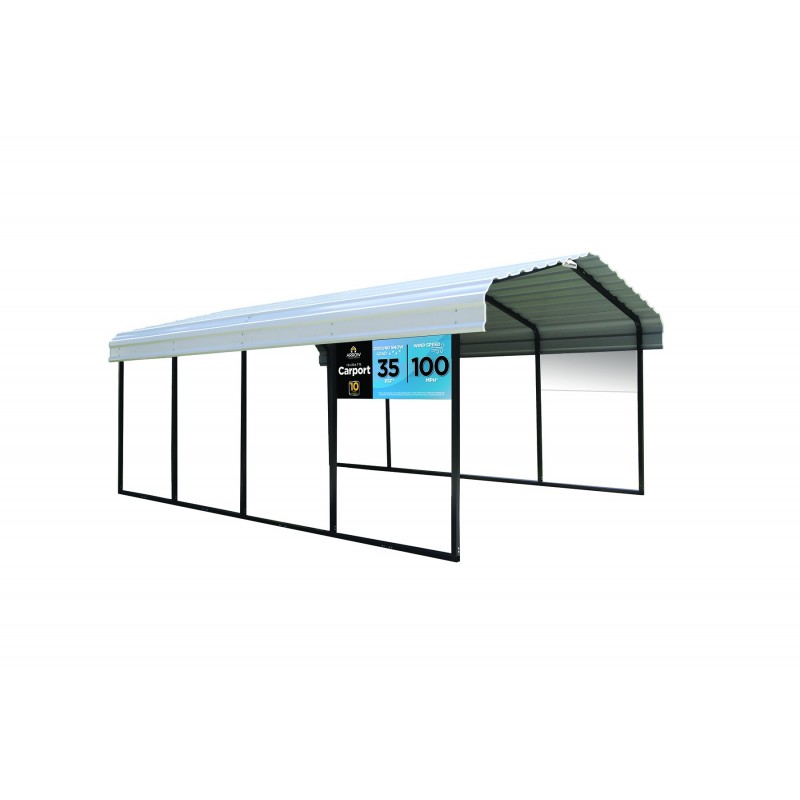

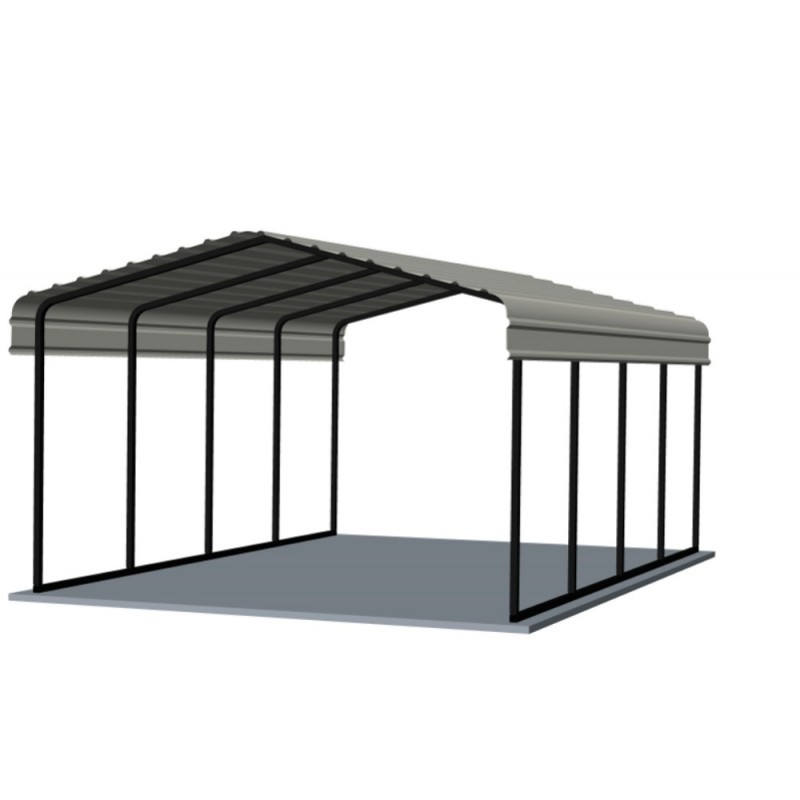

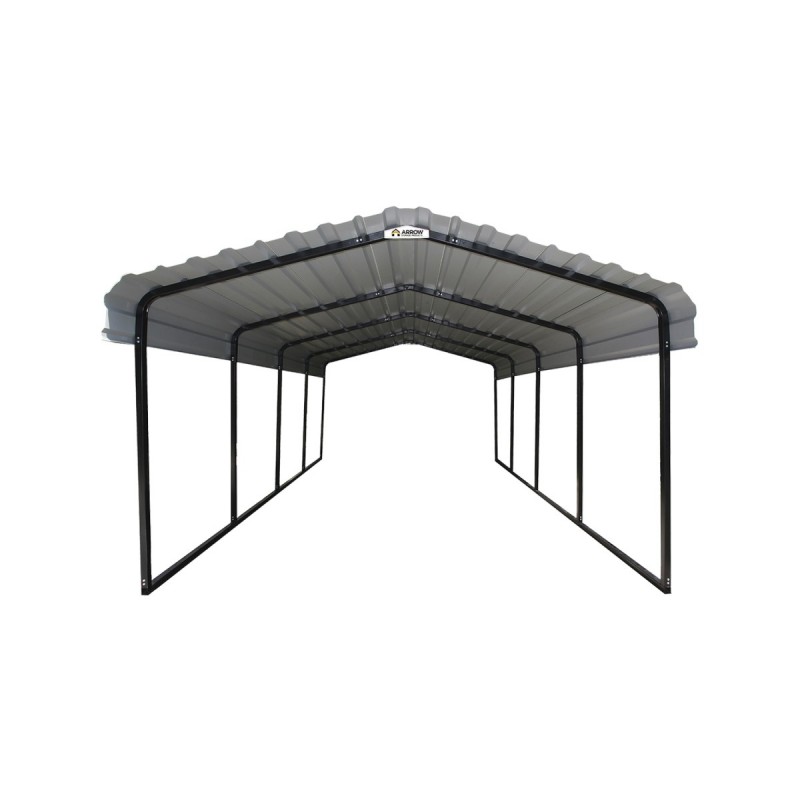

Arrow 12x20x7 Steel Carport Kit (CPH122007)

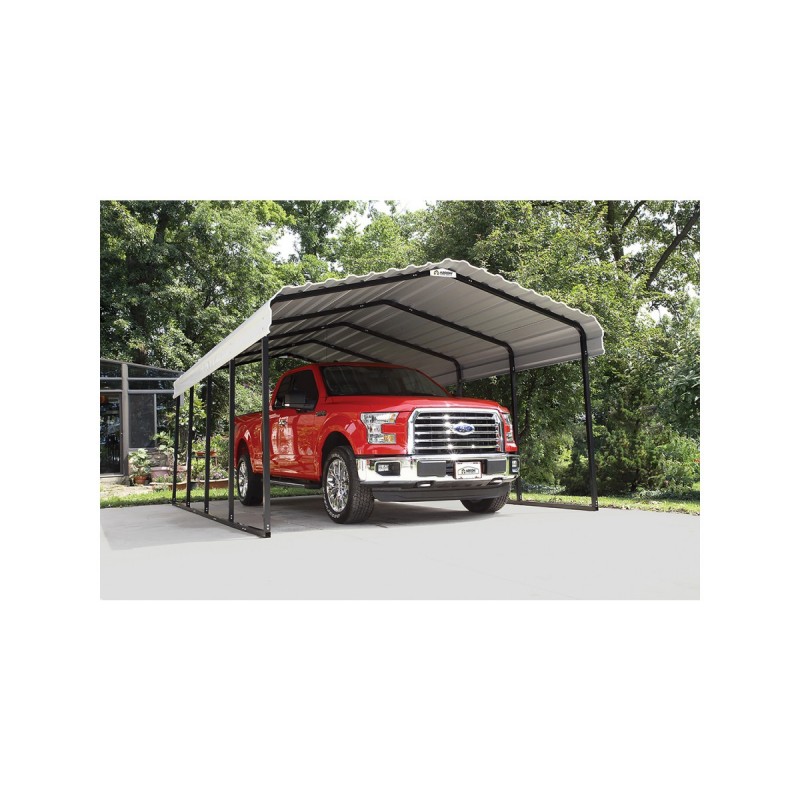

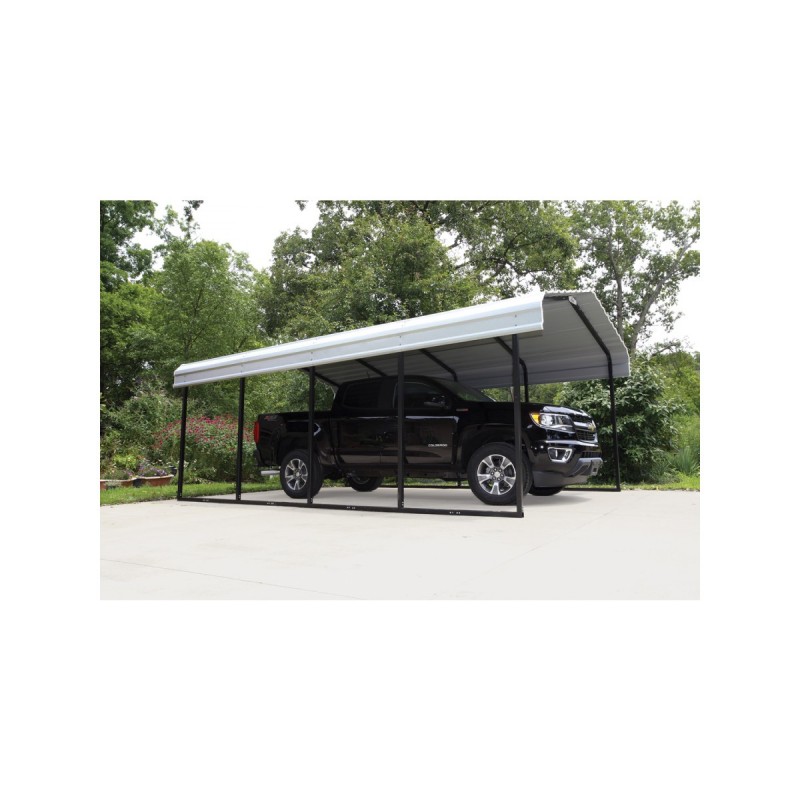

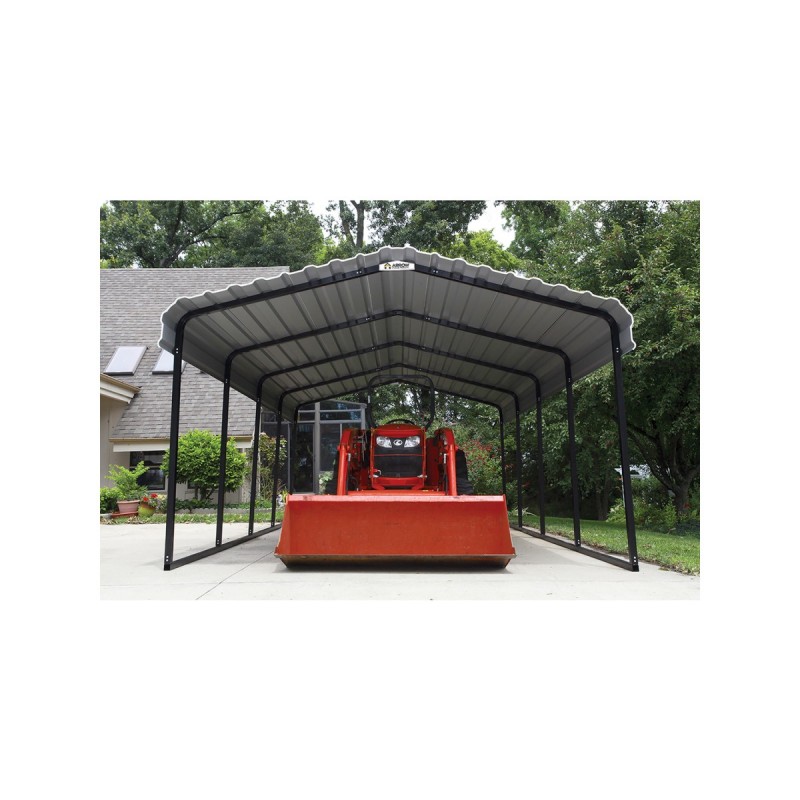

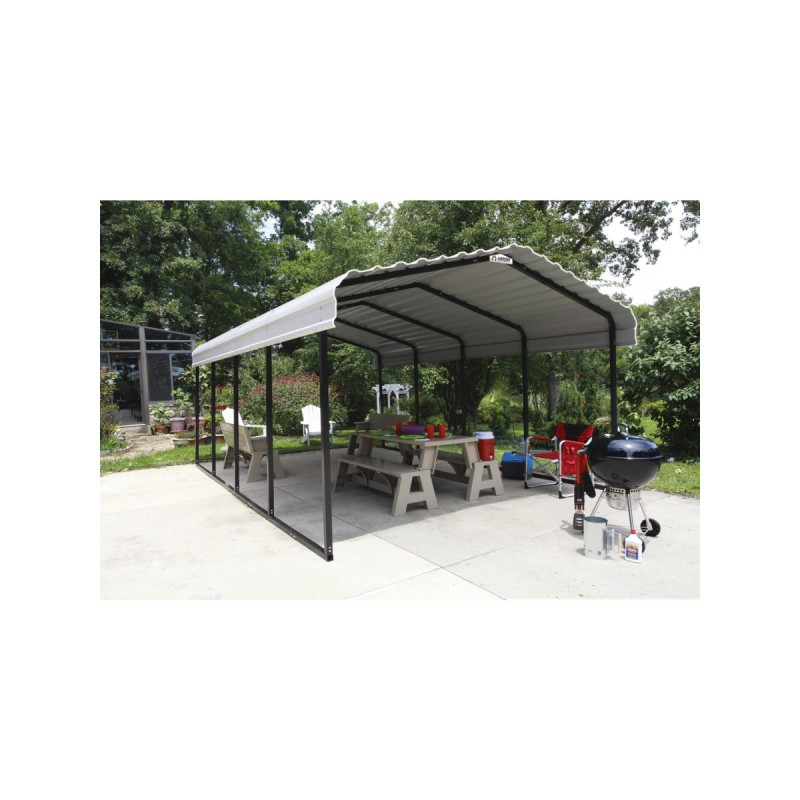

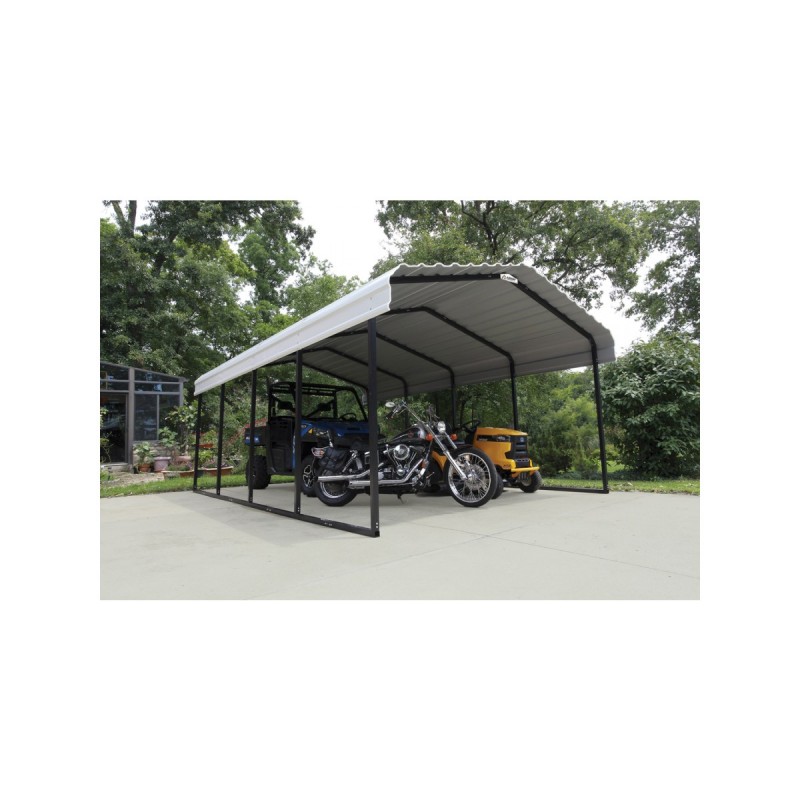

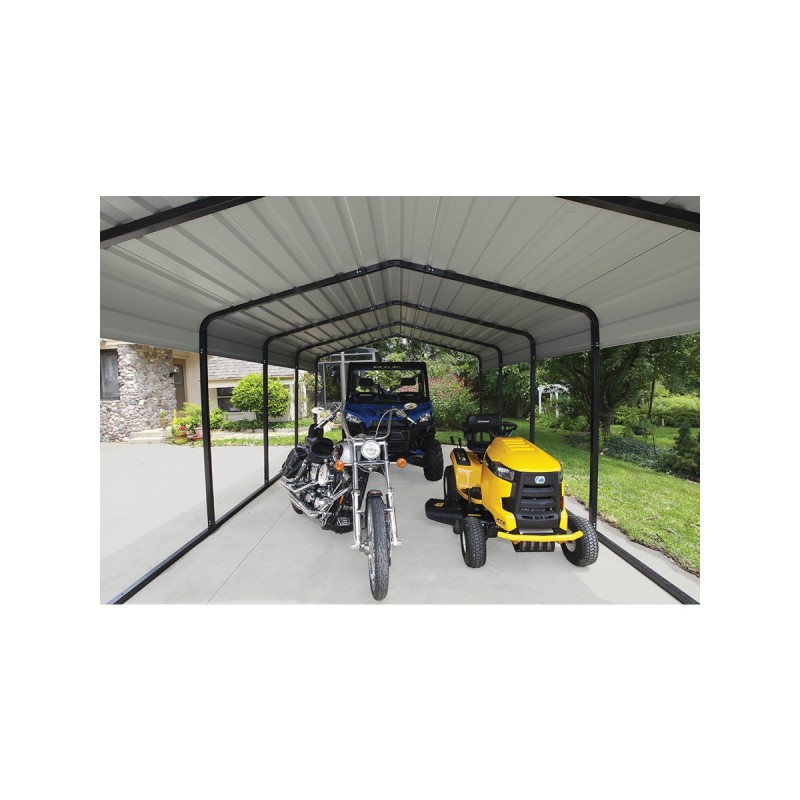

Multi-purpose port - perfect for vehicles, tractors, 4-wheelers, shelter from the elements, picnic table area, patio furniture, general gathering area, and more.

• 12 ft. Width x 20 ft. Depth x 7 ft. Eave Height (3,7 x 6,1 x 2,1 m)
• Built-To-Last Roof
• 10 ft. horizontal roof panels with 29 gauge painted galvanized steel for corrosion resistance
• Rounded eaves for additional protection from elements
• Peak height 8 ft. 6 in. (2,6 m) with 3:12 roof pitch
• 10.5 in. (26.7 cm) overhang at gables
• Industrial Grade Frame:
• 2 in. (5,1 cm) square tube / 15 gauge wall thickness delivers wind and snow load strength and stability
• Slip-Fit Frame Connection System for easy assembly
• 4.5 ft. (1,3m) rib spacing
• Finish: Black powder-coat frame and Eggshell roof panels
• DIY assembly
• 10 Years Limited Warranty
• Ground Snow Load:  35 lbs. per sq ft
• Wind Load:  100 mph

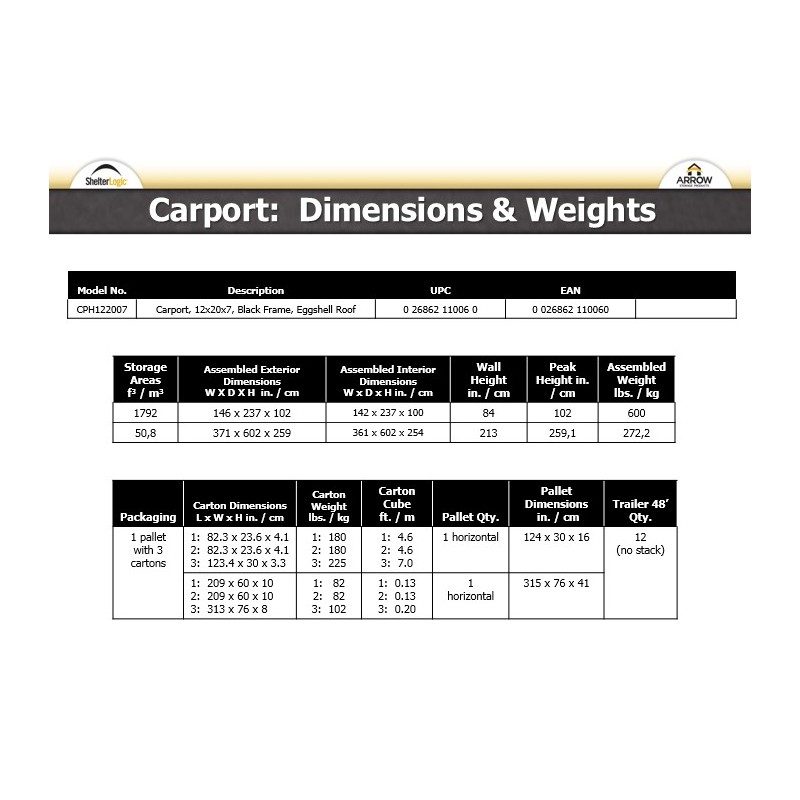

Model:  CPH122007
Size:  12x20x7
Colors:  Eggshell roof with Black frame
Storage Area:  234 square ft. / 1792 cubic ft.
Exterior Dimensions:  146"W x 237"D x 102"H at peak
Interior Dimensions:  142"W x 237"D x 100"H at peak
Building Weight:  575 lbs. (shipping weight 672 lbs.)

*flooring materials not included

Free Fast Shipping!
No Sales Tax! *excludes MO

INDUSTRIAL GRADE FRAME

2 in. / 5,1 cm square tube / 15-gauge wall thickness delivers wind and snow load strength and stability. Premium black powder coat finish resists rust and corrosion. Rib spacing: 4.5 ft. / 1,3 m.

SLIP-FIT FRAME CONNECTIONS

with pilot holes and self-drilling screws for easy assembly. Ready-to-build right out of the box.

BUILT-TO-LAST ROOF

10 ft. / 3,1 m horizontal roof panels with 29-gauge painted galvanized steel for corrosion resistance. Rounded eaves for additional protection from elements. 8 ft. 6 in. / 2,6 m peak height. Roof pitch: 3:12. 12 in. / 30,5 cm overhang at the gables. Eggshell finish, black frame.
