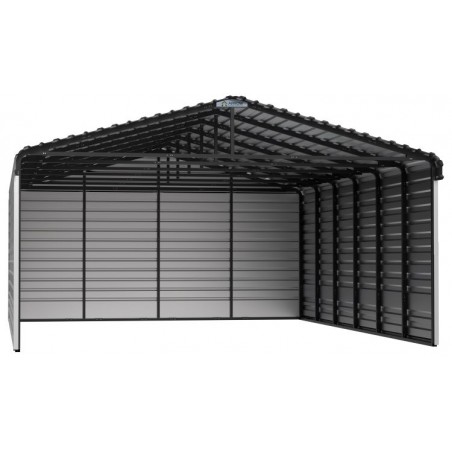

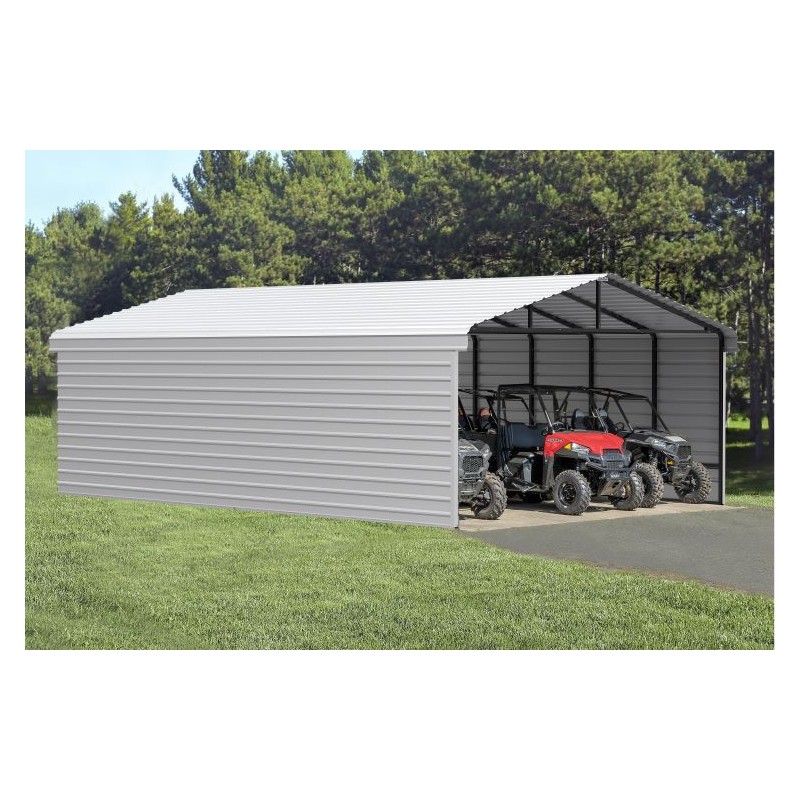

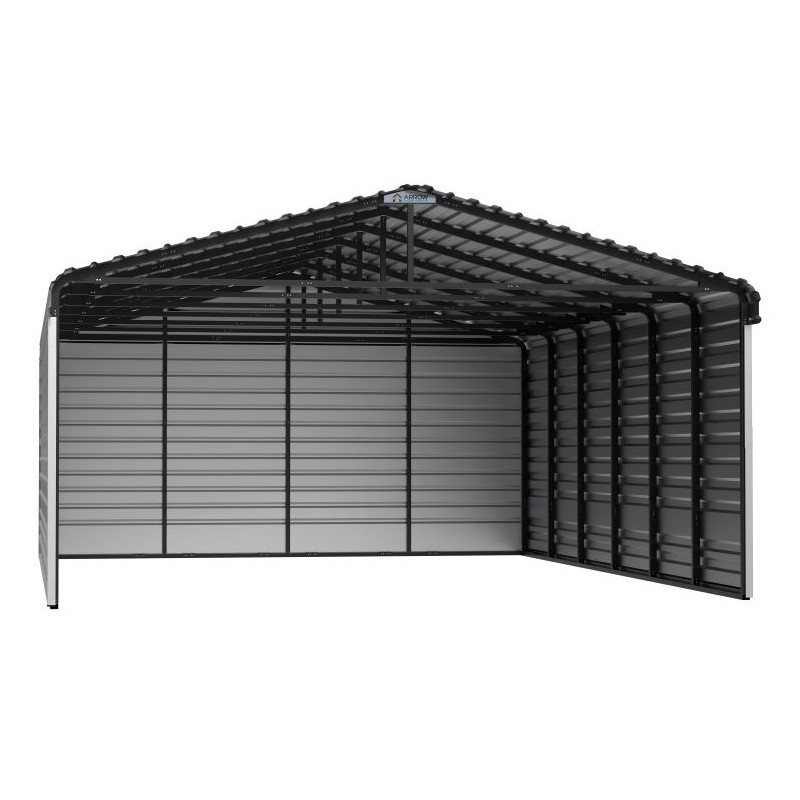

Arrow 3-Sided 20x29x9 Galvanized Steel Carport Kit - Eggshell (CPH202909ECL3)

Arrow 3-Sided 20x29x9 Galvanized Steel Carport Kit - Eggshell (CPH202909ECL3)

Improved your outdoor area with our premium carport, designed to withstand harsh weather conditions while ensuring superior protection for your vehicles and equipment. Built with a sturdy 2-inch square tube powder-coated steel frame, this carport delivers exceptional stability and strength, making it ideal for any setting. Its thoughtful design features slip-fit frame connections, pilot holes, and self-drilling screws, allowing for a quick and straightforward assembly so you can start enjoying your carport immediately. The gracefully curved roof eaves and 12-inch overhang at the gables not only enhance its visual appeal but also provide extra protection against rain, snow, and other severe weather. For added durability, a heavy-duty 29-gauge galvanized steel sidewall can be easily incorporated, further safeguarding your investment from the elements. Finished in a chic Eggshell color, this carport seamlessly fits with any property style while delivering excellent functionality. Proudly made in the USA with materials sourced globally, you can trust in its lasting quality and reliability.

FEATURES

• Featuring a 2 in. square tube powder-coated steel frame, which provides stability and strength to the unit
• Built for easier, faster assembly: its unique design features a slip-fit frame connection with pilot holes and self-drilling screws for assembly that's faster, more convenient right out of the box

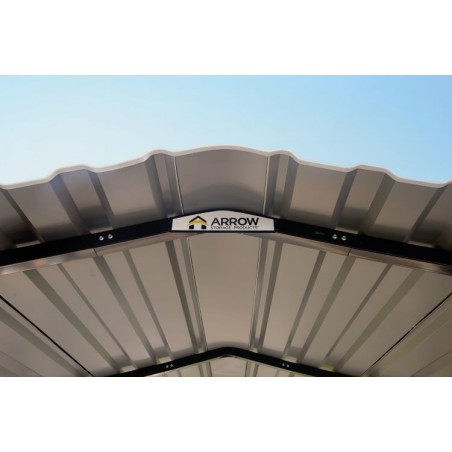

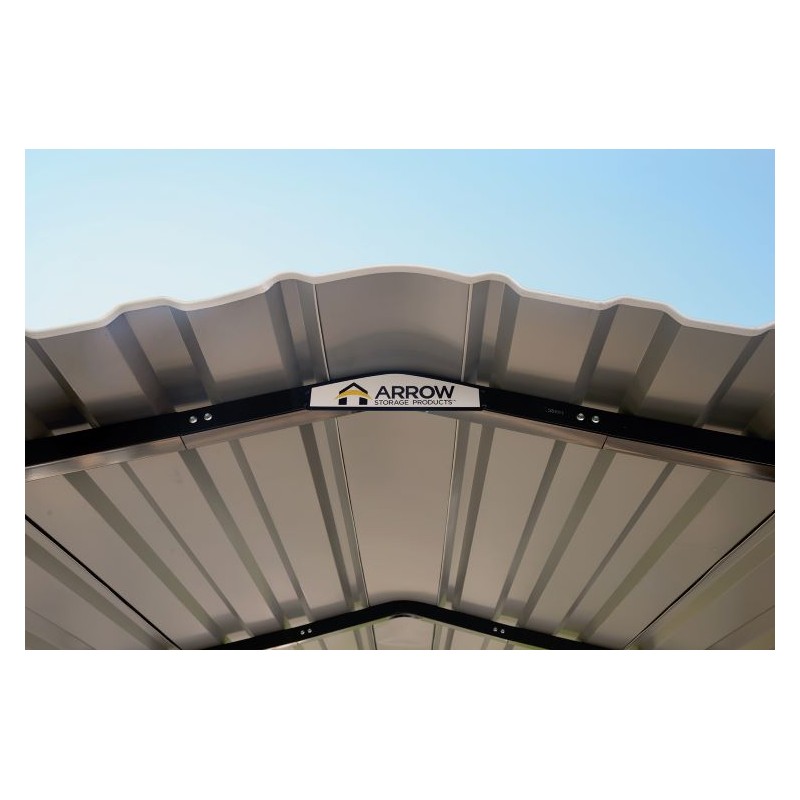

• Rounded roof eaves and 12 in. overhang at the roof gables offer additional protection from the elements

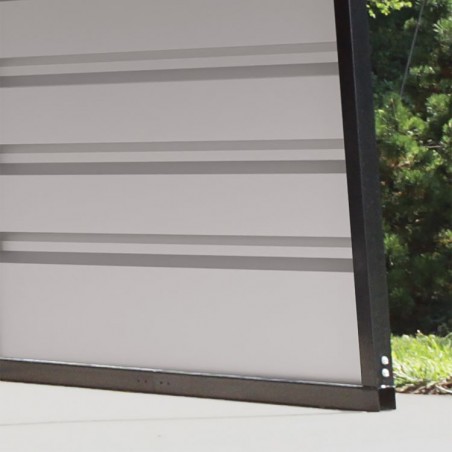

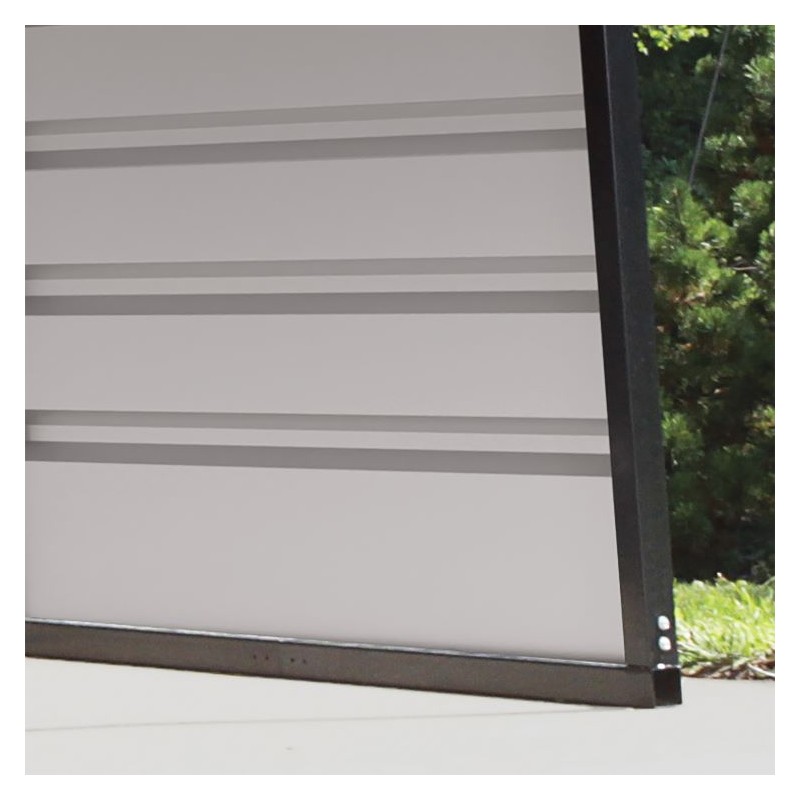

• A heavy-duty 29-gauge galvanized steel sidewall matches the roof and can be attached to the Carport to provide extra protection from the elements
• The roof and sidewall panels come in an attractive Eggshell finish
• Manufactured in the United States using globally sourced materials
• Comes with a 10-year warranty
• Snow load is given as reference only and assume a securely anchored frame according to local building codes and ordinances. These have been calculated using combined snow load provisions in accordance with ASCE 7-05.

SPECIFICATIONS

Color: Eggshell
Cover Color: Eggshell
Frame Color: Black
Frame Material: Steel
Building Shape: Peak
Shape Of Tube: Rectangle
Foundation Width (In): 252
Foundation Length (In): 360
Door Width Bottom (In): 237
Door Height (In):108.75
Wall Height (In): 108.75

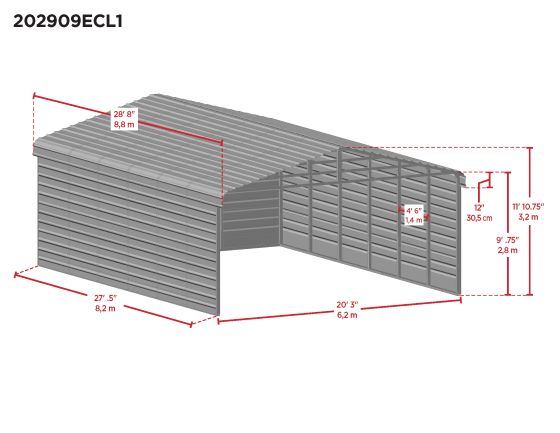

Assembled Exterior Dimensions Depth (In): 344.5
Assembled Exterior Dimensions Height (In): 142.75
Assembled Exterior Dimensions Width (In): 243
Total Storage Volume (Cu. Ft.): 5894

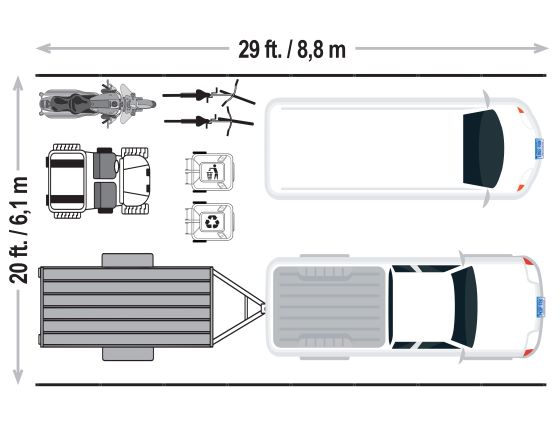

Total Storage Area (Sq/Ft): 567
Snow Load Rating (Psf): 30
Wind Load Rating (Mph): 70
Item Gross Weight (Lbs.): 2706
Number of Boxes: 10
