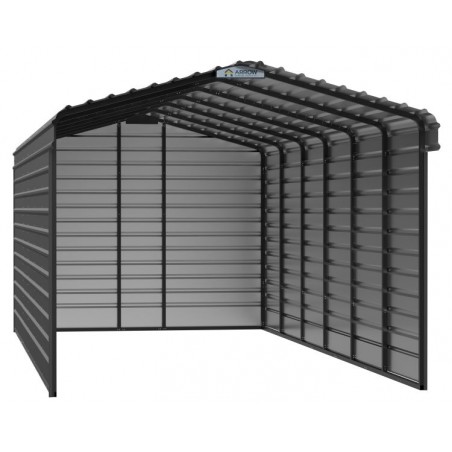

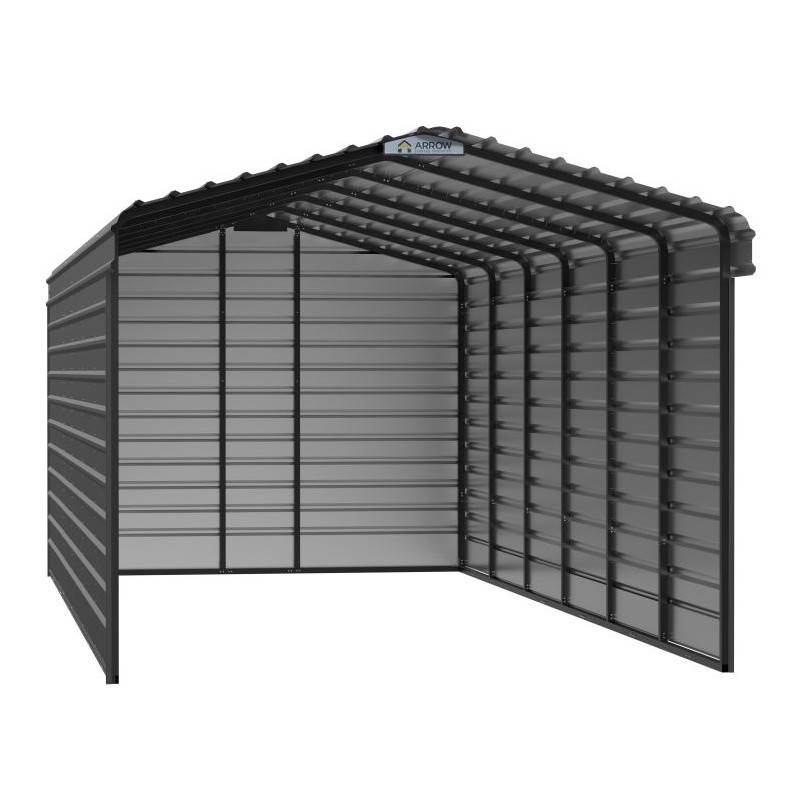

Arrow 3-Sided 12x29x9 Enclosure Steel Carport Kit - Charcoal (CPHC122909ECL3)

Arrow 3-Sided 12x29x9 Enclosure Steel Carport Kit - Charcoal(CPHC122909ECL3)

Enhance the aesthetic and functional appeal of your property with our premium carport, designed to provide exceptional protection for your vehicles and equipment in all weather conditions. Built with a sturdy 2-inch square tube powder-coated steel frame, this carport ensures remarkable strength and durability, making it a dependable choice for any environment. The thoughtful design includes user-friendly features like slip-fit frame connections and pre-drilled pilot holes, combined with self-drilling screws that facilitate a swift and straightforward assembly process. This means you’ll spend less time on installation and more time enjoying the benefits of your new carport. The stylishly curved roof eaves and ample 12-inch overhang at the gables not only enhance the overall aesthetic but also offer superior protection against rain, snow, and other extreme weather conditions. For those looking to maximize durability, our heavy-duty 29-gauge galvanized steel sidewall option adds an extra layer of defense, ensuring your investment is well-protected against the elements for years to come.

FEATURES

• Featuring a 2 in. square tube powder-coated steel frame, which provides stability and strength to the unit
• Built for easier, faster assembly: its unique design features a slip-fit frame connection with pilot holes and self-drilling screws for assembly that's faster, more convenient right out of the box

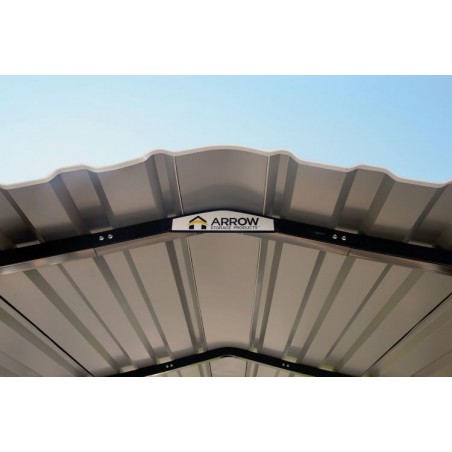

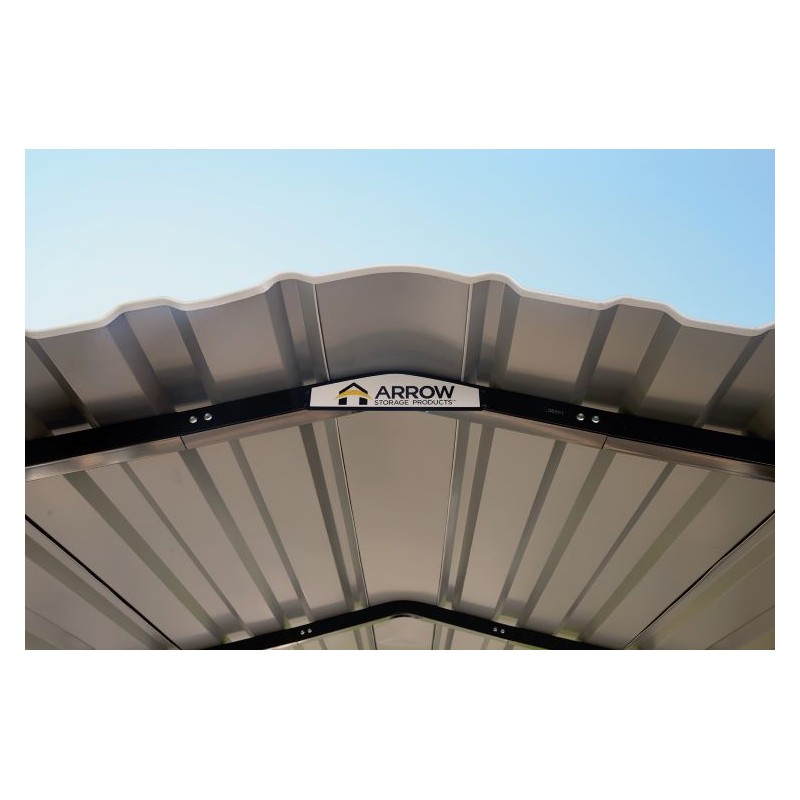

• Rounded roof eaves and 12 in. overhang at the roof gables offer additional protection from the elements

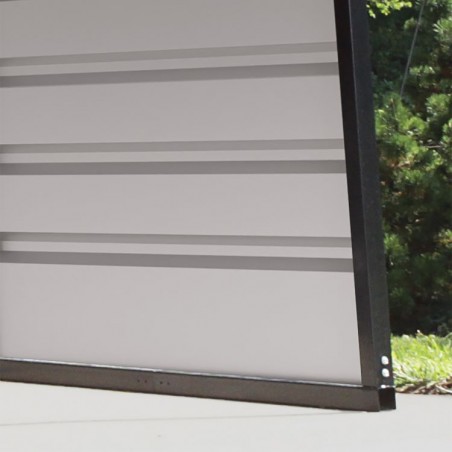

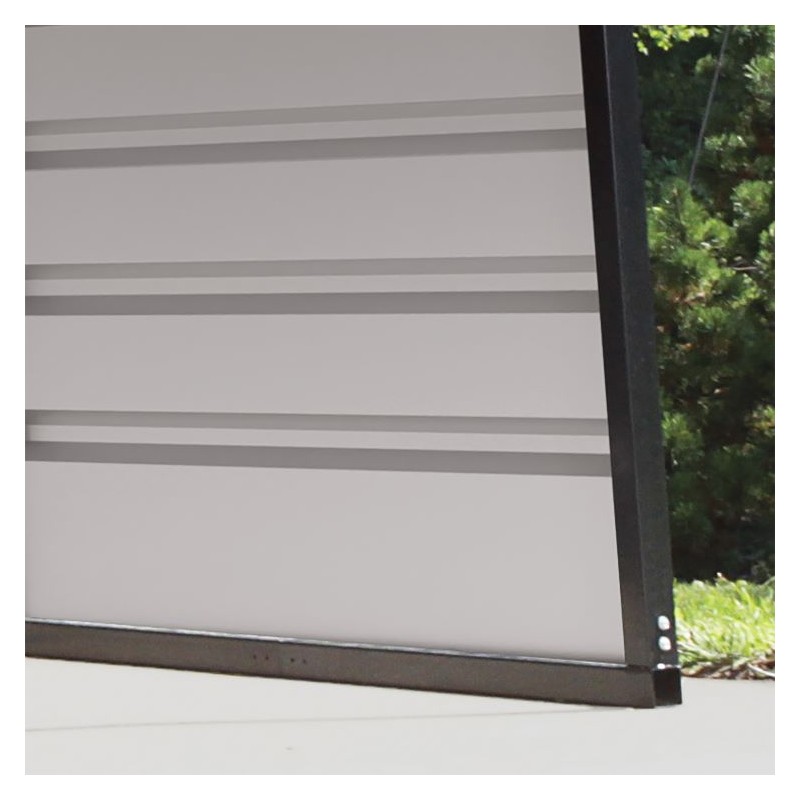

• A heavy-duty 29-gauge galvanized steel sidewall matches the roof and can be attached to the Carport to provide extra protection from the elements
• The roof and sidewall panels come in an attractive Eggshell finish
• Manufactured in the United States using globally sourced materials
• Comes with a 10-year warranty
• Snow load is given as reference only and assume a securely anchored frame according to local building codes and ordinances. These have been calculated using combined snow load provisions in accordance with ASCE 7-05.

SPECIFICATIONS

Color: Charcoal
Cover Color: Charcoal
Frame Color: Black
Frame Material: Steel
Building Shape: Peak
Shape Of Tube: Square

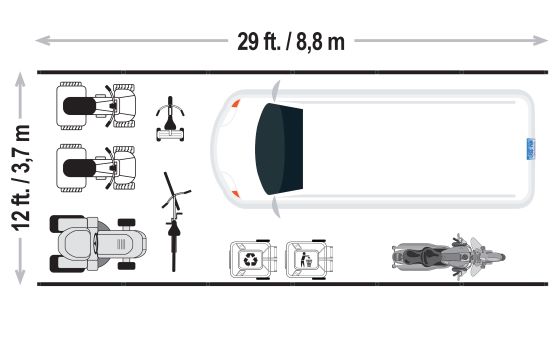

Foundation Width (In): 156
Foundation Length (In): 360
Door Width Bottom (In): 142
Door Height (In): 106.75
Wall Height (In): 108.75

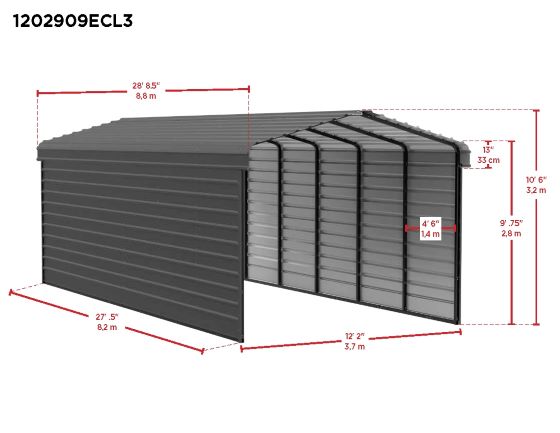

Assembled Exterior Dimensions Depth (In): 344.5
Assembled Exterior Dimensions Height (In):126.75
Assembled Exterior Dimensions Width (In): 146
Total Storage Volume (Cu. Ft.): 3305
Total Storage Area (Sq/Ft): 340
Snow Load Rating (Psf): 35
Wind Load Rating (Mph): 65
Item Gross Weight (Lbs.): 1520
Number of Boxes :18
