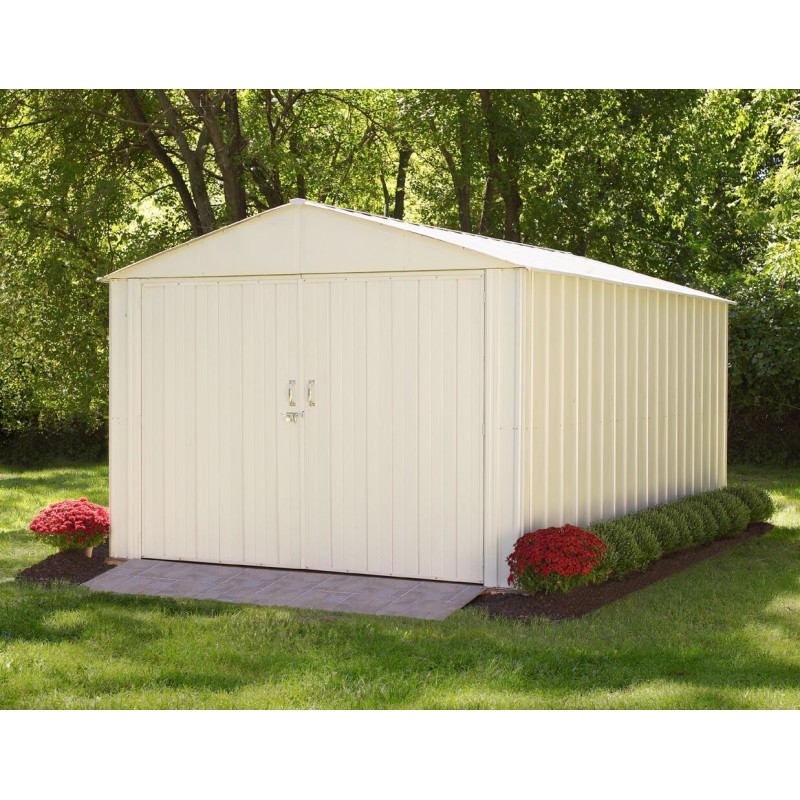

Arrow 10x20 Commander Storage Building Kit (CHD1020)

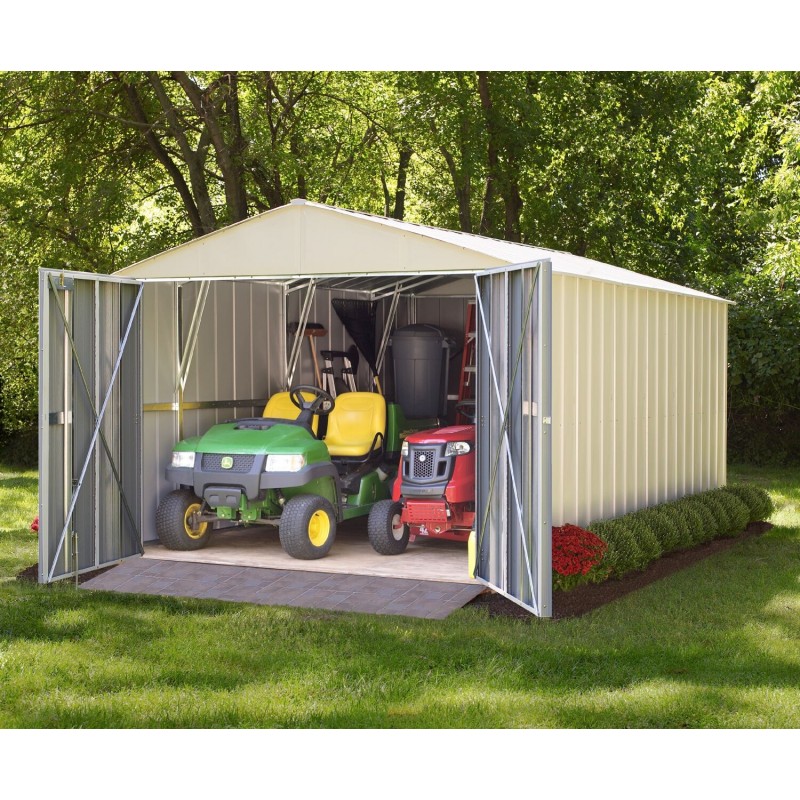

The Arrow Commander is a multi-purpose storage building with tremendous storage space. Door openings are large enough to store a small car or boat, or to create an ideal workshop or small warehouse. Frame, wall and roof parts are made from hot-dipped, electro-galvanized steel, and all painted parts have a double baked-on enamel paint finish that will keep your building serviceable and attractive for years.
- HDG STEEL® technology - steel undergoes a hot dipped galvanization process providing superior corrosion resistance
- UV resistant HDG STEEL® panels are 15% thicker than standard steel to protect against rot, insects, and extreme weather conditions
- Extra tall walls and high gable steel roof design provide increase headroom and vertical storage space

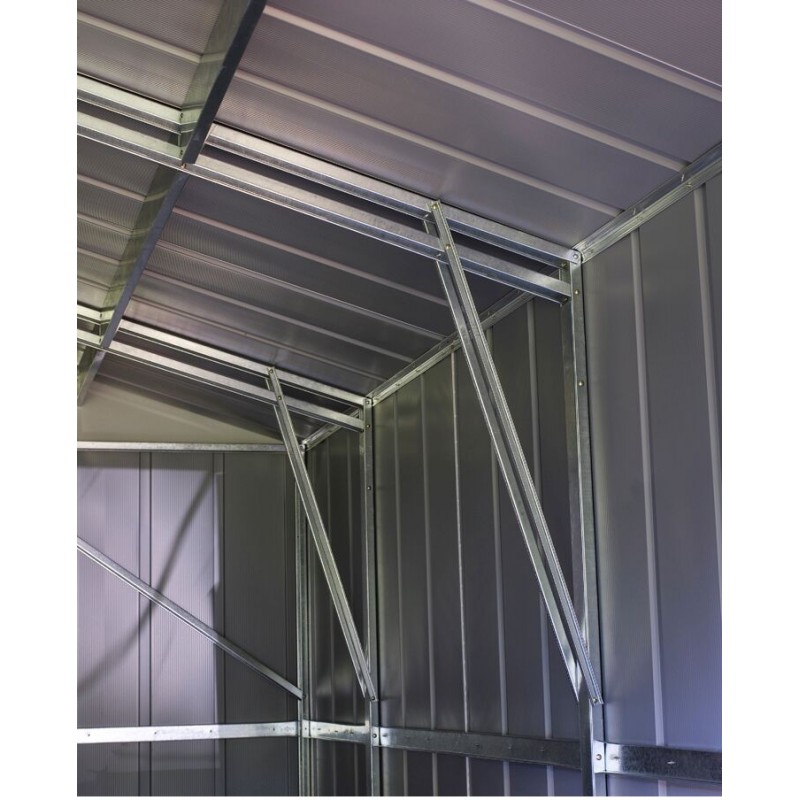

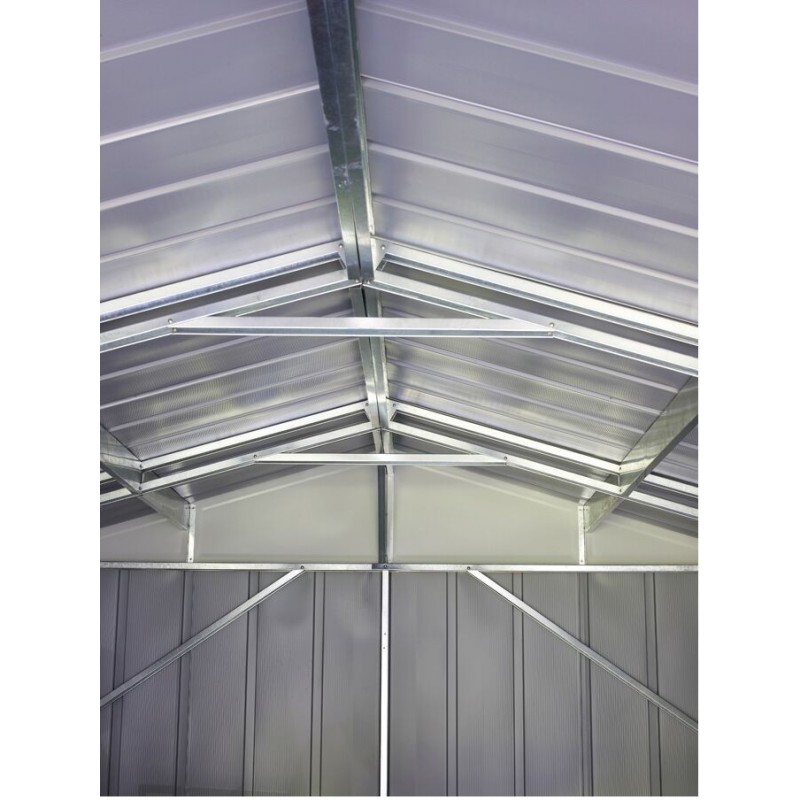

- Low profile truss design offers additional building strength

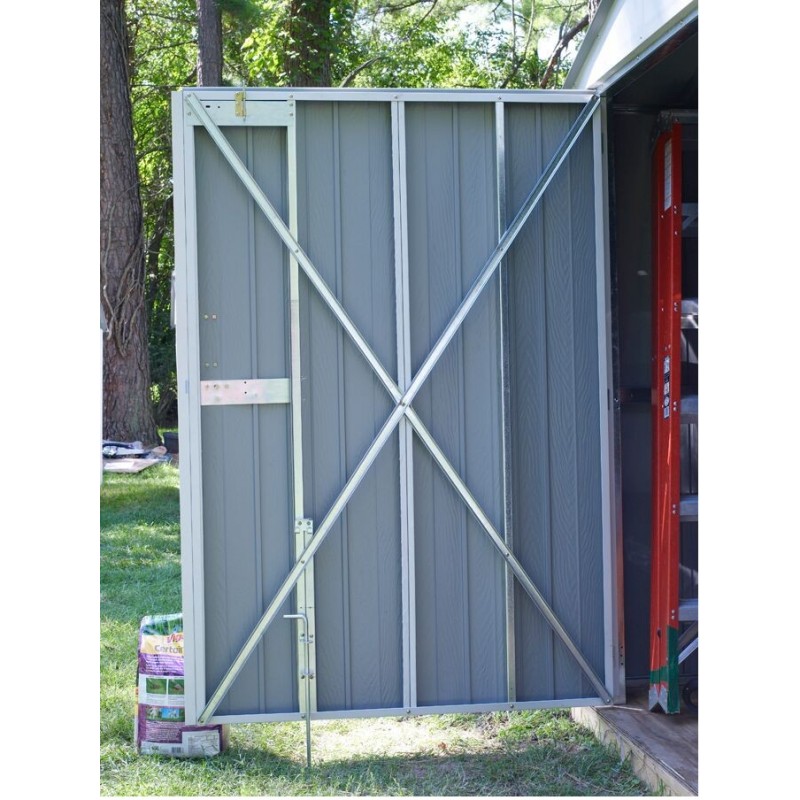

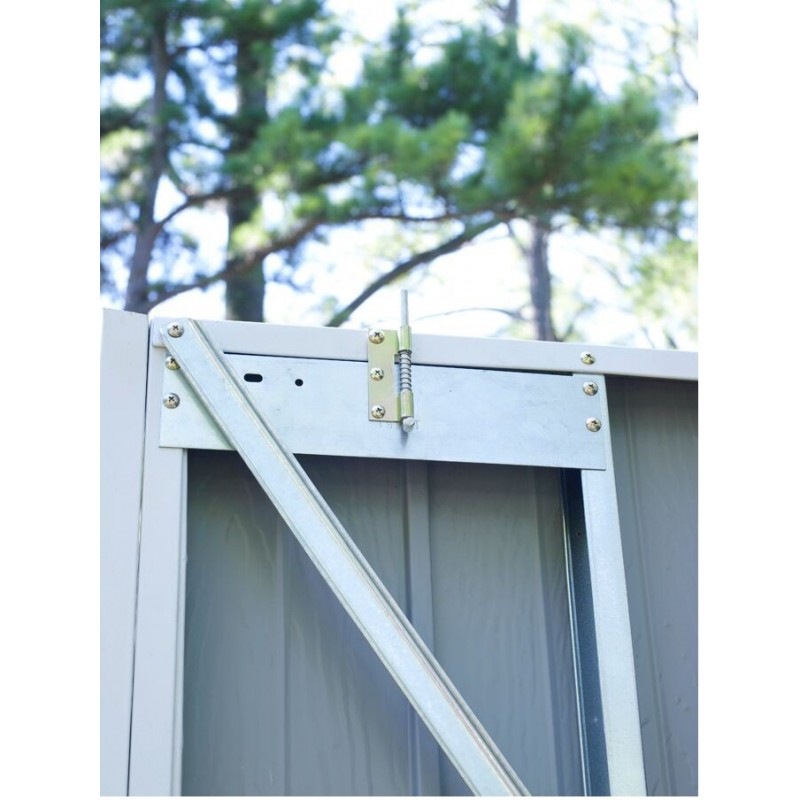

- Heavy duty wide steel swing doors with stop to keep door open

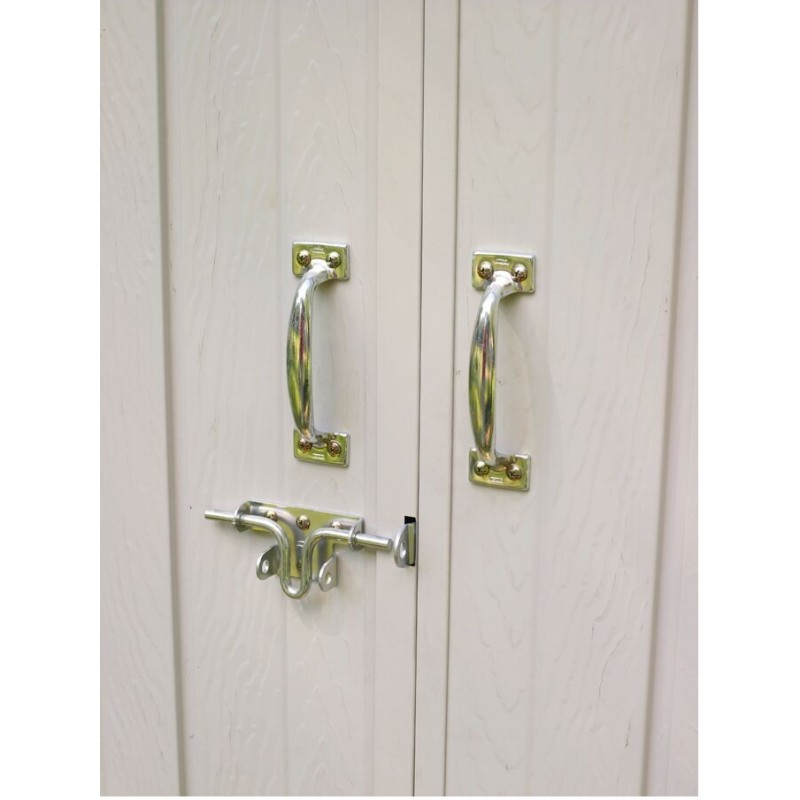

- Pad-lockable large steel door handles provide easier grab points to open and close
- DIY assembly with pre-cut and pre-drilled parts
- 15year limited warranty
SKU : CHD1020-A
Length : 20 ft.
Style : Peak
Material : Hot Dipped Galvanized Steel
Color : Eggshell
Door Type : Extra Wide Swing Doors
Size : 10 x 20 ft.
Width : 10 ft.
Height : 8 ft.
Total Storage Area : 195.9 sq. ft.
Total Storage Volume : 1346.5 cu. ft.
Assembly Required : Yes
Assembled Exterior Dimensions : 123.25 in.x 243.75 in. x 92.5 in.
Assembled Interior Dimensions : 118.25 in. x 238.5 in. x 91.25 in.
Door Opening Width Top : 98.25
Door / Entrance Width Bottom: 98.25 in.
Door / Entrance Height Outside : 72.75 in.
Wall Height : 73.75 in.
Peak Height : 17.5 in.
Warranty : 15 Year Limited
