Best Barns Crafter's Connection 12x16 Standard ALL Pre-Cut Storage Sheds - Door on Eave (CCONDE16C)

Best Barns Crafter's Connection 12x16 Standard ALL Pre-Cut Storage Sheds - Door on Eave (CCONDE16C)

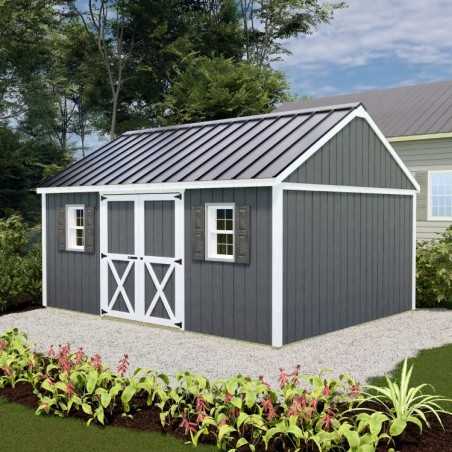

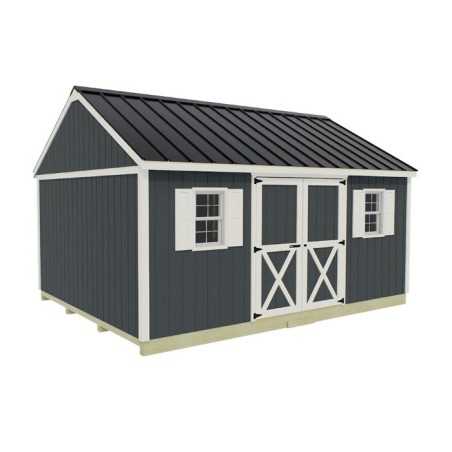

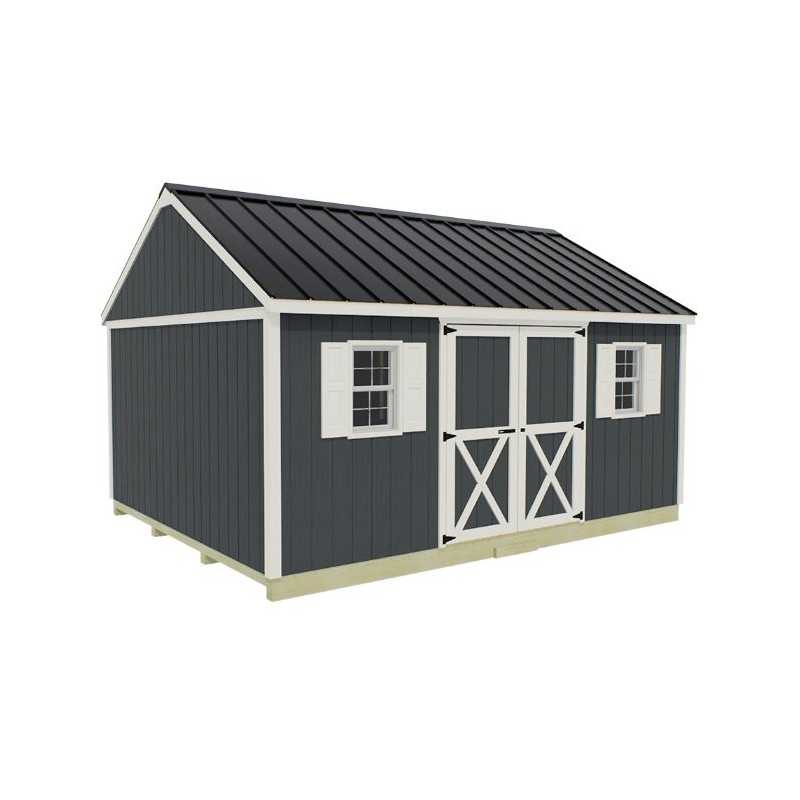

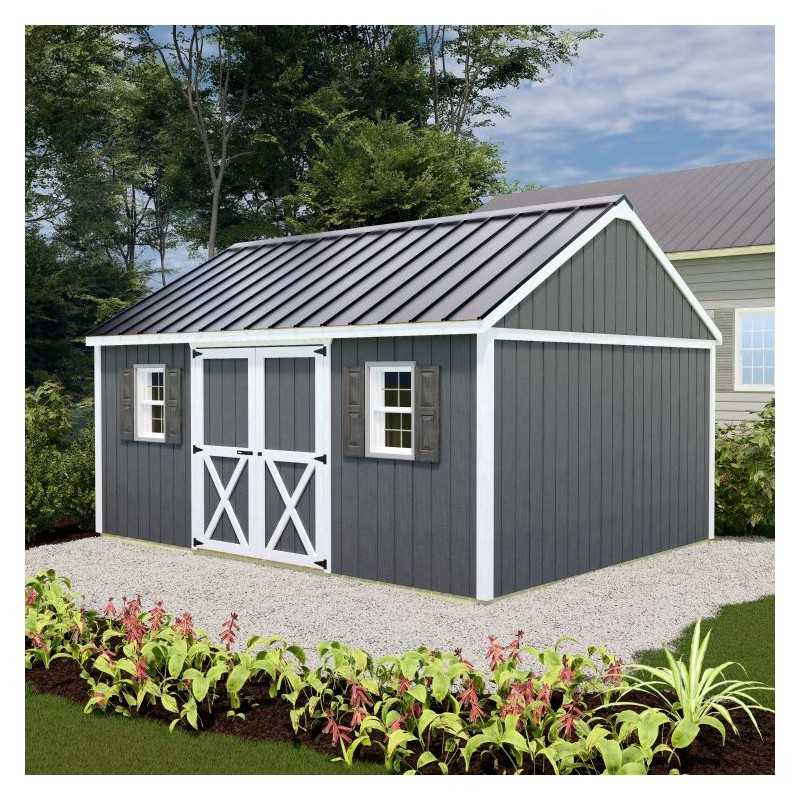

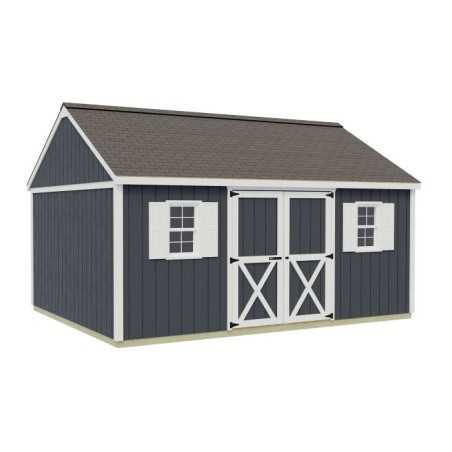

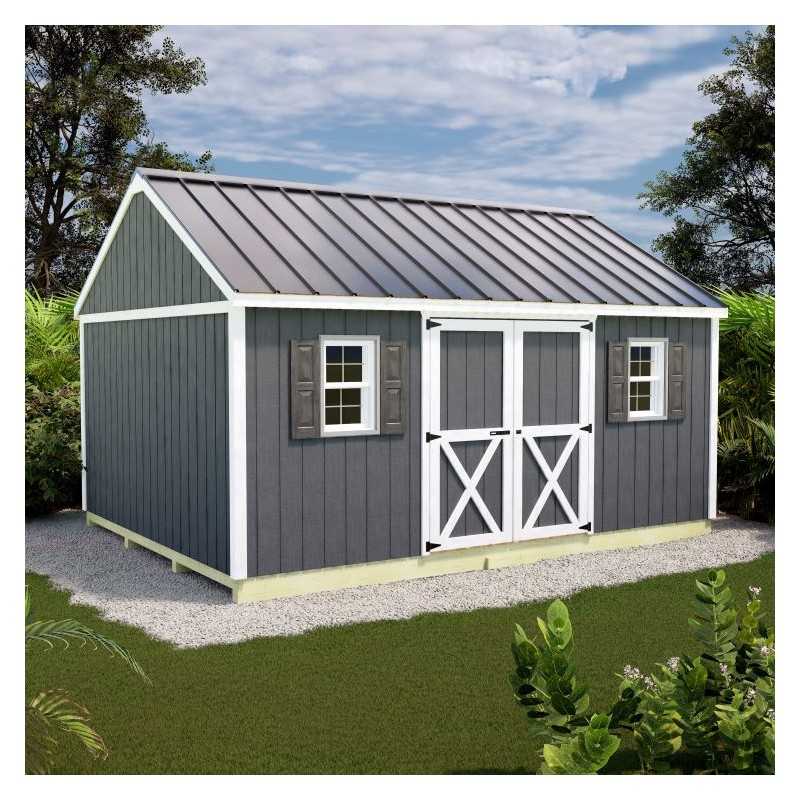

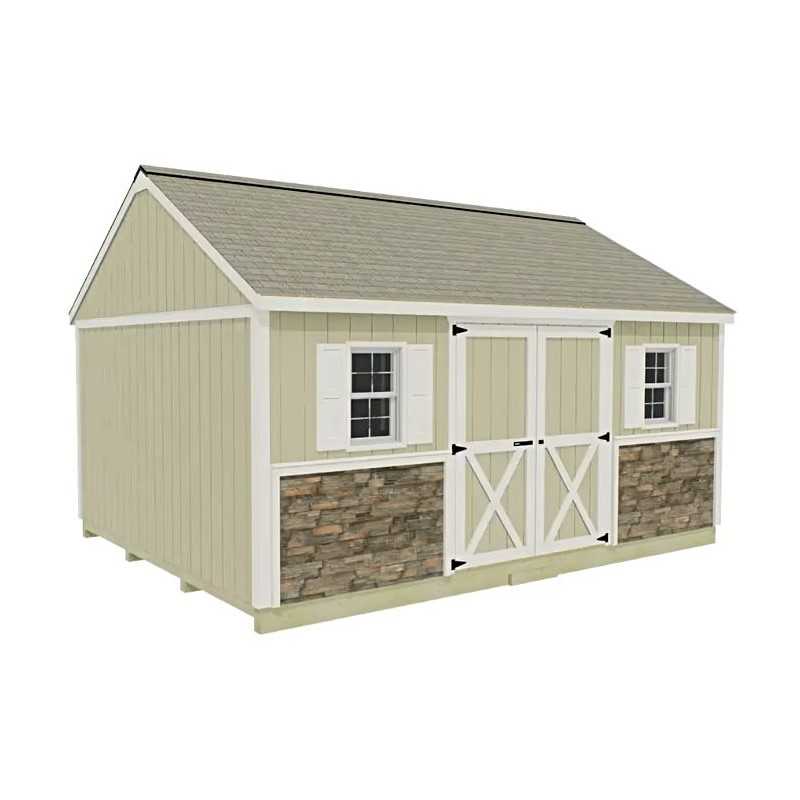

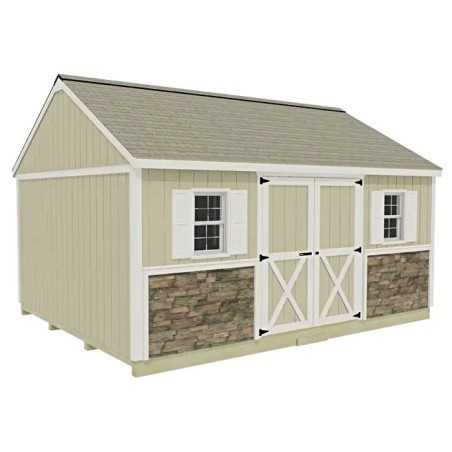

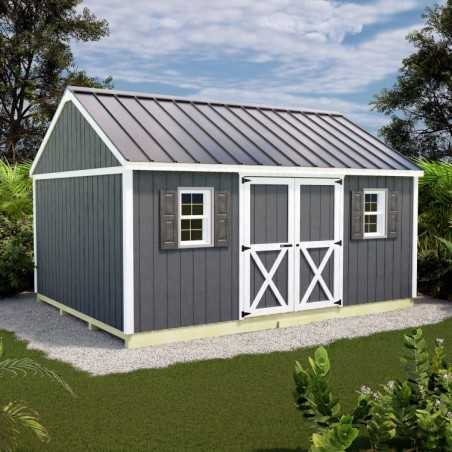

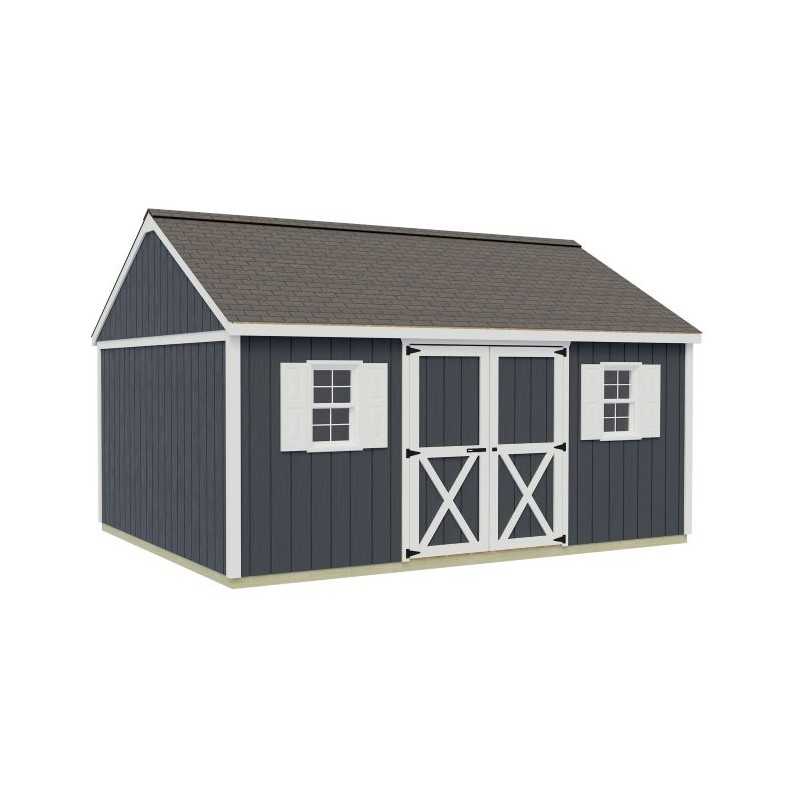

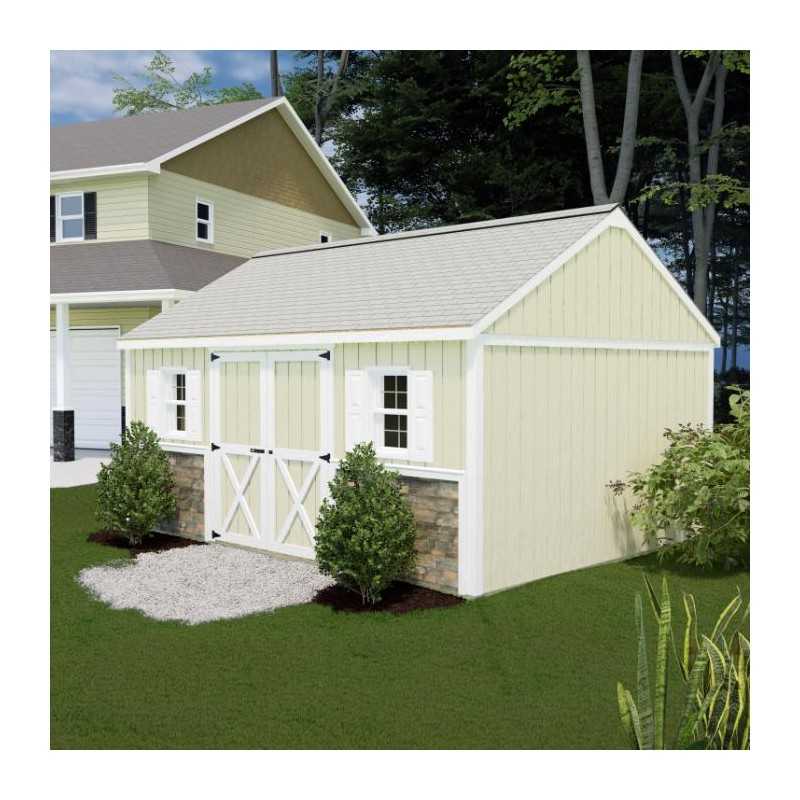

The Crafter’s Connection Series, the 12×16 Shed Kit is thoughtfully designed to meet a variety of needs whether you're building a workshop, organizing garden tools, or creating a backyard escape. With its centered barn doors on the eave side, this shed offers convenient access while maximizing usable interior space. Engineered for strength and simplicity, it features Best Barns’ exclusive SecureTruss system, precision pre-cut components, and high-quality imported Eurowood ensuring durability, ease of assembly, and long-lasting performance. It’s a smart, budget-friendly solution that doesn’t sacrifice quality.

The spacious 5'4" wide by 5'11" high barn doors easily accommodate riding mowers, ATVs, and larger tools, while the classic 6/12 gable roof pitch and 6'4" side walls provide excellent vertical storage, reliable water runoff, and timeless curb appeal. Previously sold as the Brookfield model, this upgraded shed combines improved construction with user-focused design making it a versatile and attractive addition to any backyard or homestead.(previously sold as the Brookfield shed kit, this is the same shed reworked for better quality and marketing).

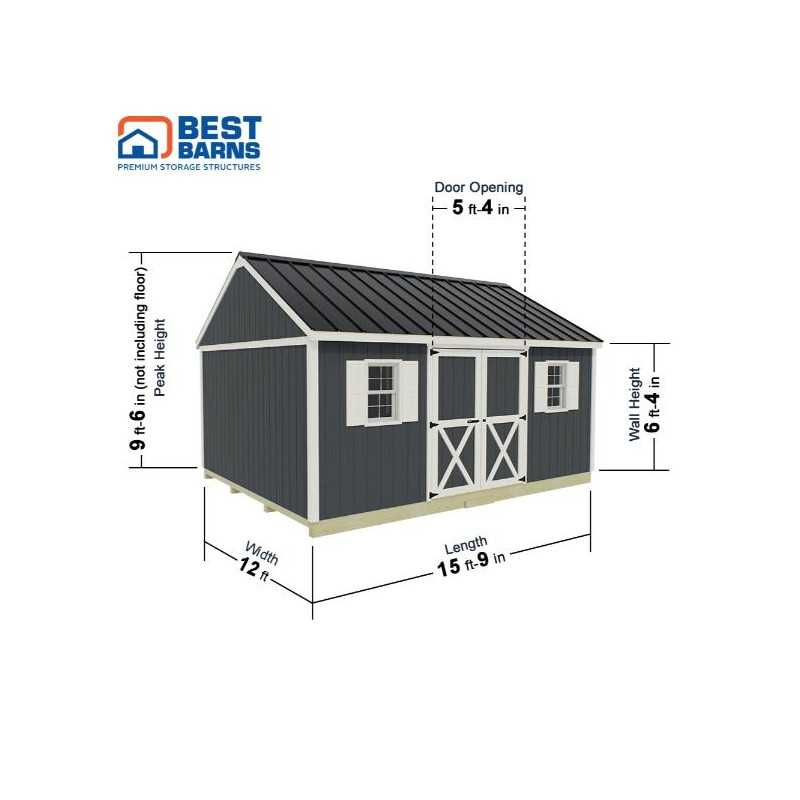

SPECIFICATIONS

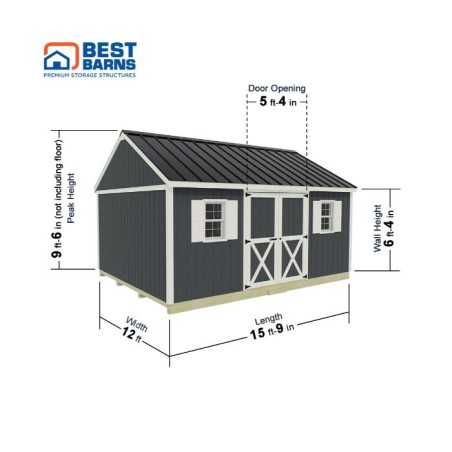

• Storage Capacity: 192 sq (12'x 16')
• Outside Measurements: 12'W x 16'D x 9'6"H (not including floor if added)
• Sidewall Height: 6'4"
• Door Measurements: 5'4"W x 5'11"H (centered-eave side)
• Stud Measurements: 2x4 studs, 24" on center

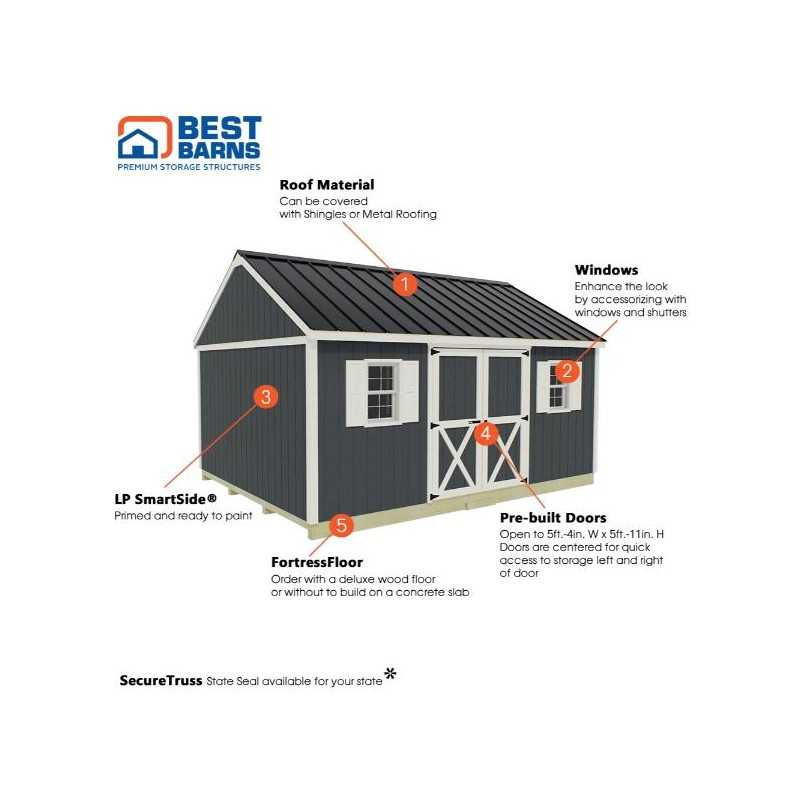

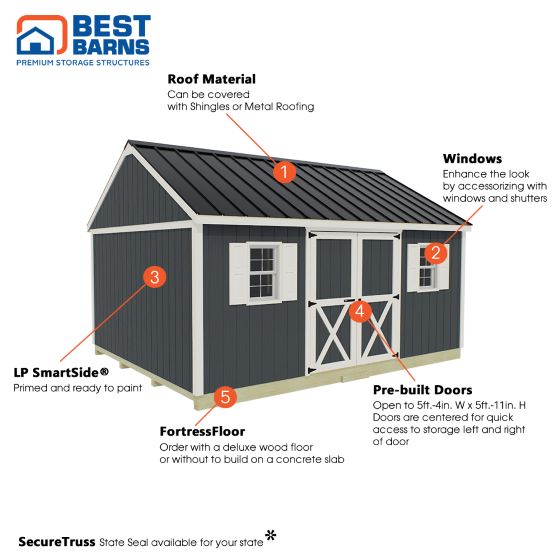

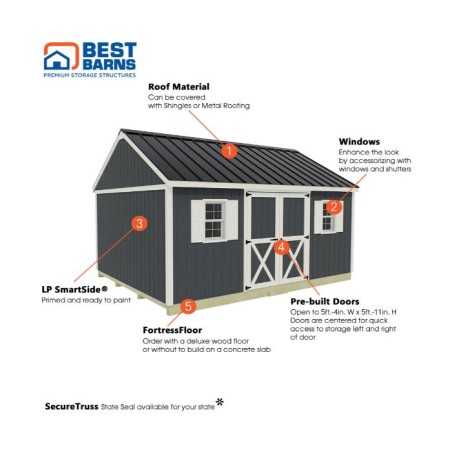

FEATURES
Sturdy-Built Truss System:

• Rated for 150 mph wind resistance
• Supports 50 lbs/sq. ft. snow load
• Includes hurricane truss hangers for added safety

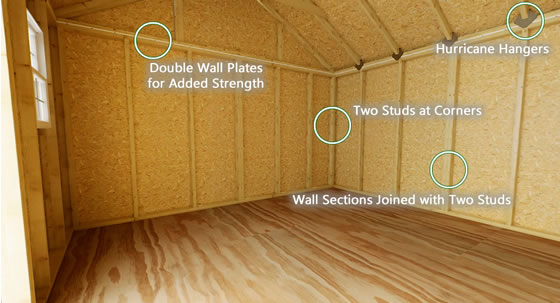

• Collar ties, gussets, tie plates, and two-stud corner construction for maximum durability

Pre-primed Siding

• 3/8" LP SmartSide exterior panels
• Pre-primed and ready to paint
• Resists fungal decay and insect damage
• Backed by a 50-year limited warranty

TimberPrestige Eurowood  Framing

• Uniform, clean lumber with fewer knots
• Minimizes warping and splintering for easier assembly
• Provides consistent rigidity
• Built with 2x4 studs spaced 24" on center

What’s Included

• Centered eave barn doors for easy access
• All pre-cut materials: wall studs, roof sheathing, trusses, trim, and siding panels, all labeled
• Hardware kit: hinges, latch, hurricane straps, nails, glue, and detailed assembly manual
• Not Included: Windows, flooring, paint, shingles, and roof edging — giving you the freedom to customize your shed’s appearance and functionality.

Once you receive your new building begin by unpacking the pre-cut framing, doors and hardware. You will also receive a detailed manual with step by step instructions. Each step is explained with clear instructions and detailed line art and has been developed with the novice builder in mind.

Best Barns wood shed kit components fit easily into place with no special tools or skills required!

• Pre-cut roof trusses for fast and accurate assembly
• Pre-cut Wood Gussets
• Pre-cut wall framing
• Pre-cut exterior siding for an accurate fit
• Pre-cut roof sheathing
• Pre-cut trim for a perfect fit
• Pre-built barn doors
• Technical Support - 7 days
• Satisfaction Guaranteed

All required hardware including door hinges, latch, nails, hurricane hangers, glue for gussets and detailed instruction manual. Shingles and roof edge provided by owner.

Order with confidence. We take great pride in our wood shed kits. Product quality and satisfaction is our number one goal. We use the highest grade of lumber from Sweden and Germany. These countries require a more stringent grading system than US standards ensuring only the best lumber is used in your shed kit.

SIDING:

SIDING

Premium Quality You Can Count On

At the heart of every wood shed kit we offer is a commitment to exceptional craftsmanship and customer satisfaction. That’s why we use only high-grade lumber sourced from Sweden and Germany regions renowned for their strict timber grading standards, which surpass U.S. requirements. The result? A shed kit built with premium, reliable wood you can trust for years to come.

Engineered SecureTruss Roof System

Designed for superior strength and safety, our roof system features:

• Hurricane-rated truss hangers for added wind resistance
• Reinforced construction with collar ties, gussets, tie plates, and two-stud corners
• Engineered for long-lasting structural integrity, even in demanding climates

TimberPrestige Eurowood Framing

Our exclusive framing system offers unmatched quality and ease of use:

• Clean, uniform lumber with minimal knots for a polished look
• Reduced warping and splintering for faster, smoother assembly
• Greater consistency and rigidity throughout the structure
• Built with 2x4 studs spaced 24" on center for dependable strength

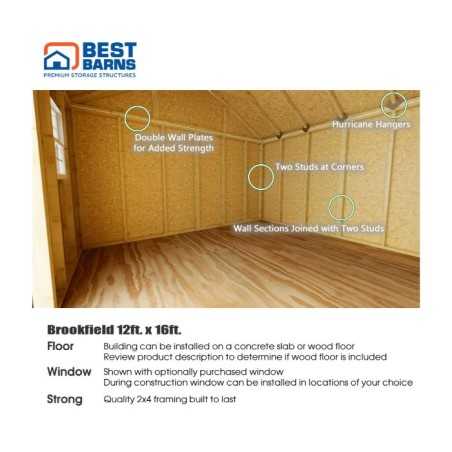

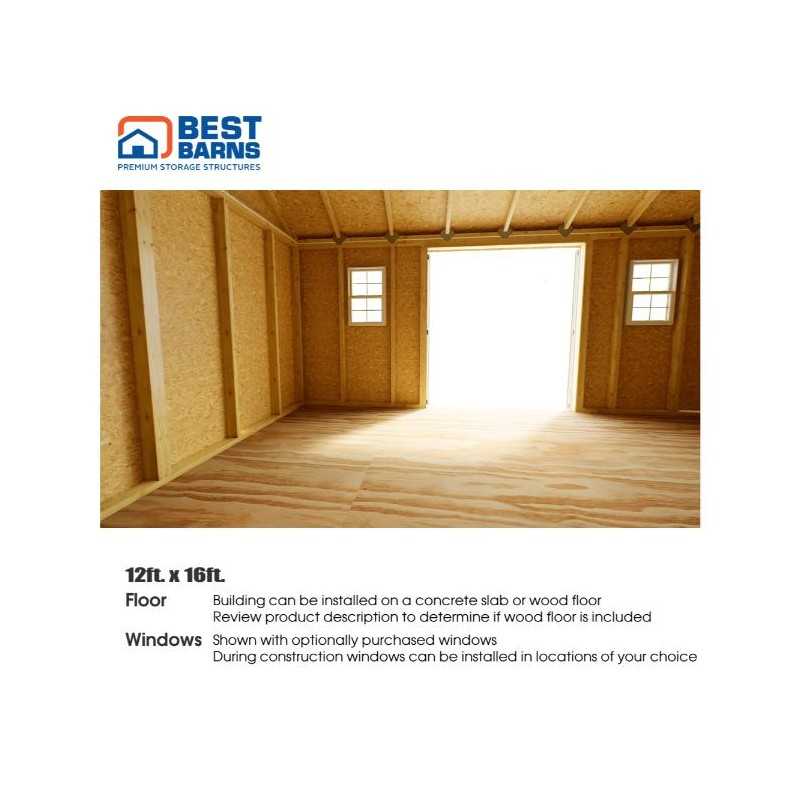

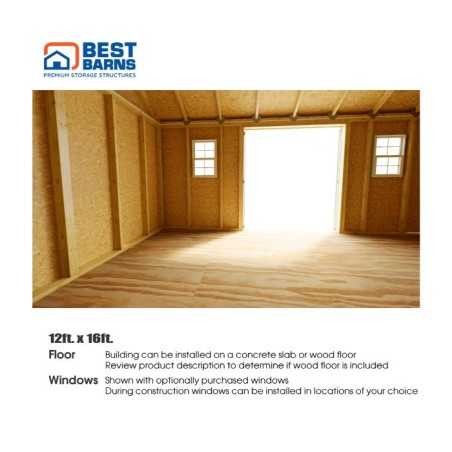

INTERIOR

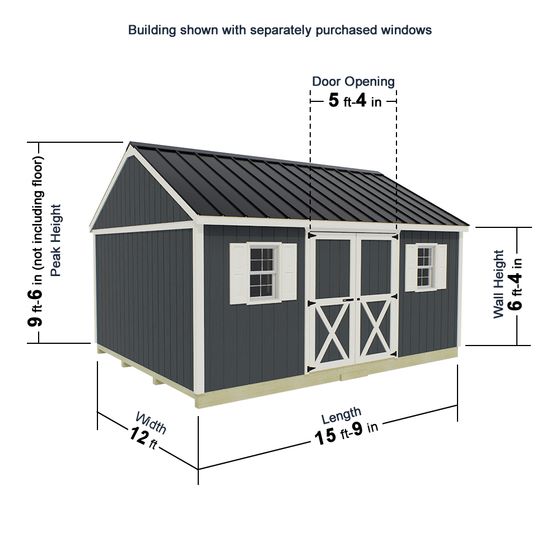

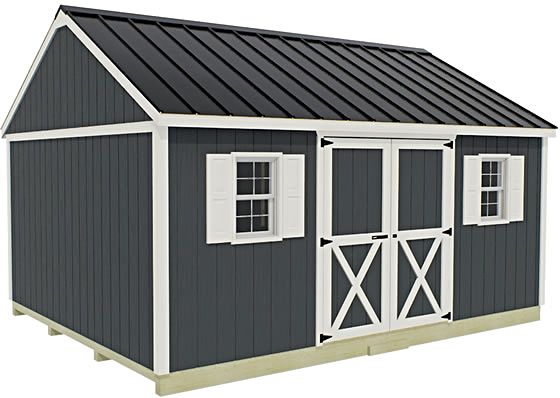

ELEVATION:

OPTIONAL WINDOWS with VINYL SHUTTERS

Our windows are made of durable aluminum and include decorative, paintable vinyl shutters for each side. They feature lockable frames and integrated screens to help keep both intruders and pests out.

Choose between two sizes: 18"x27" or 18"x36". Both window sizes are compatible with all shed kits. While the 27" high window is generally well-proportioned for a 6'-4" wall, and the 36" high window complements an 8'-1" wall, these recommendations are based on Best Barns' design opinion. Final selection should reflect your personal preference and desired aesthetic.

***OPTIONAL OCTAGONAL GABLE WINDOW***

**OPTIONAL CUPOLA***

• Adds ventilation: 72 sq. in. air movement
• Enhances building profile
• Mix or match 7 base/top colors
• Lightweight, impact resistant, high density polyethylene
• 22" x 22" base is 34" high, plus 14" weathervane
• Handcrafted 14 gauge laser-cut steel weathervane
• Choice of 3 weather vane designs
• Resists weather: never rusts, rots or decays
• 5-year limited manufacturer's warranty

OPTIONAL SIDE DOOR

You can add an optional side entry door for convenient access! Select either a six-panel or nine-window steel door, both of which come with an aluminum threshold and lock set. When ordering, please specify which side you’d like the hinges on so we can provide the correct door. The door swings inward into the storage building.

OPTIONAL WOOD FLOOR KIT

FortressFloor – Premium Flooring Upgrade

Enhance your Best Barns Handmade Haven Mini shed with the FortressFloor a commercial-grade wood flooring system engineered for strength, durability, and a clean, finished appearance.

This optional floor kit provides a solid, level foundation while raising your building off the ground to help prevent moisture damage and rot. Built for heavy-duty performance, FortressFloor is ideal for demanding loads and tough climates.

FortressFloor Kit Includes:

• 4x4 pressure-treated runners
• 2x4 pressure-treated floor joists (spaced 16" on center)
• 3/4" thick 4'x8' plywood sheets
• All necessary hardware for assembly

Crafted from premium treated lumber, FortressFloor delivers long-lasting support and protection making it a smart investment for anyone seeking extra durability in their shed flooring.

Please Note:

• Materials are not pre-cut. Customers will need to make simple, straight cuts during assembly.
• The flooring package is delivered separately by a local lumber dealer, prior to your shed delivery.
• The dealer will contact you to schedule delivery, and someone must be present to receive and sign for the materials
