EZ-Fit Riverside 10x16 Wood Panelized Shed Kit (ez_riverside1016)

EZ-Fit Riverside 10x16 Wood Panelized Shed Kit (ez_riverside1016)

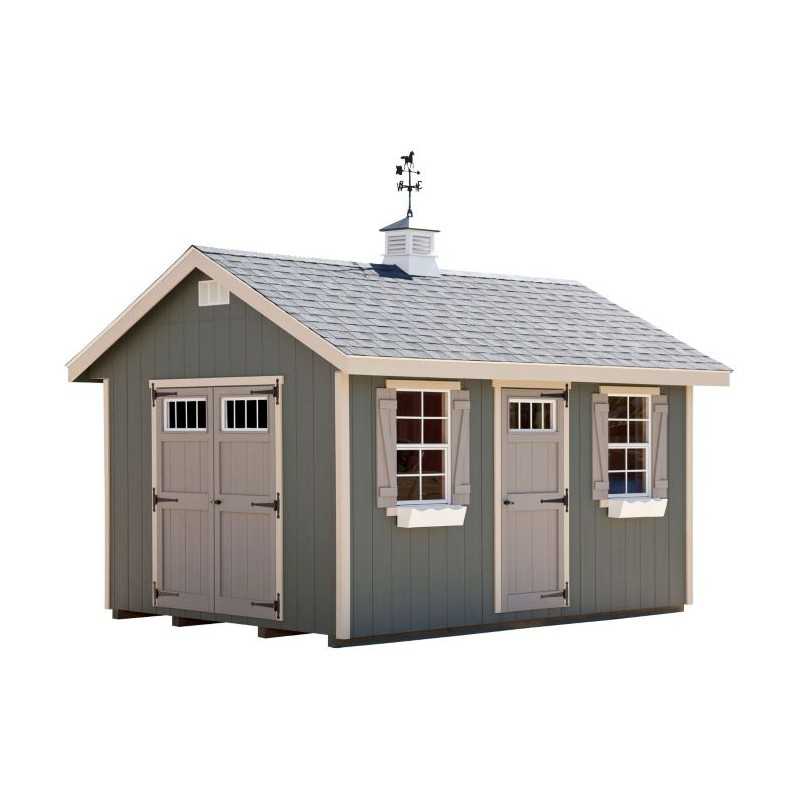

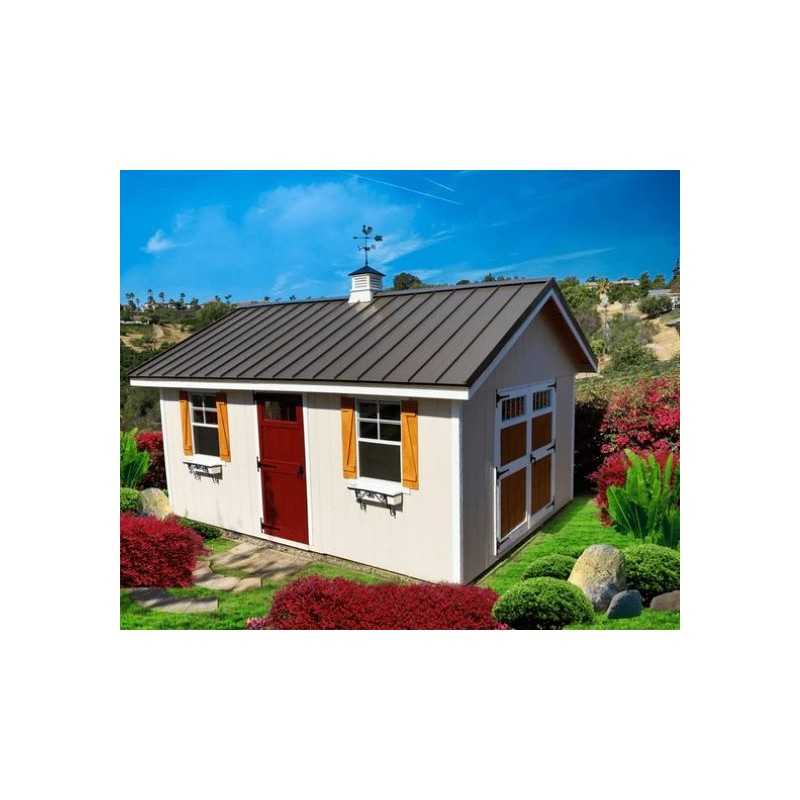

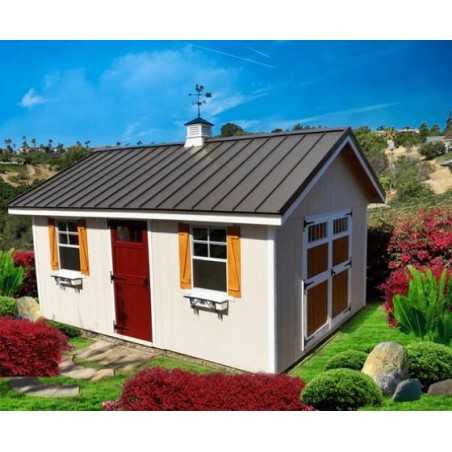

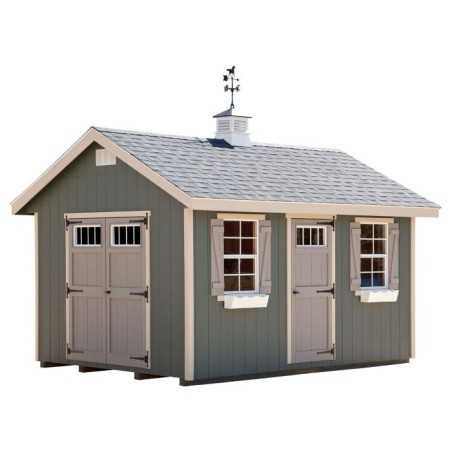

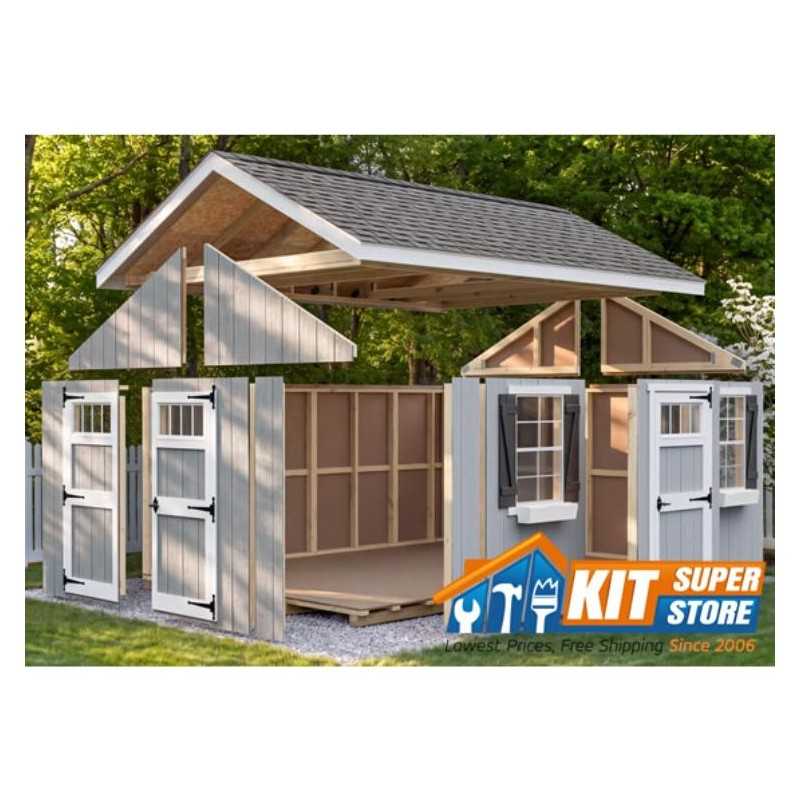

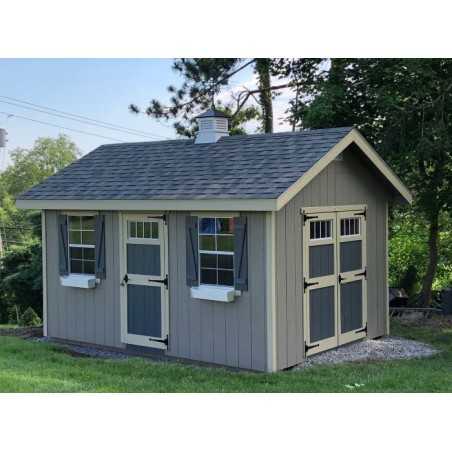

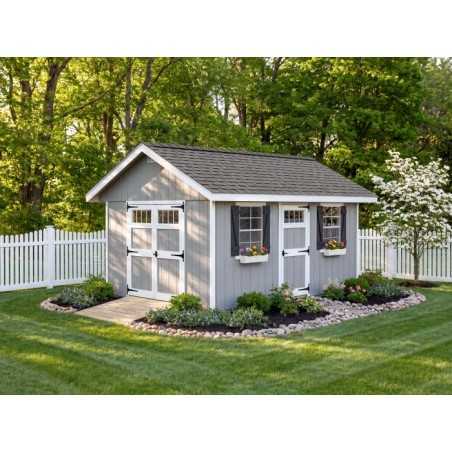

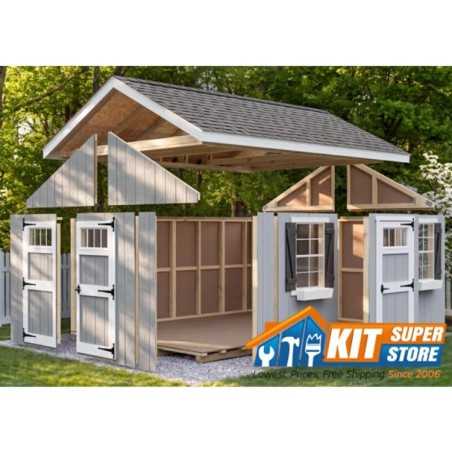

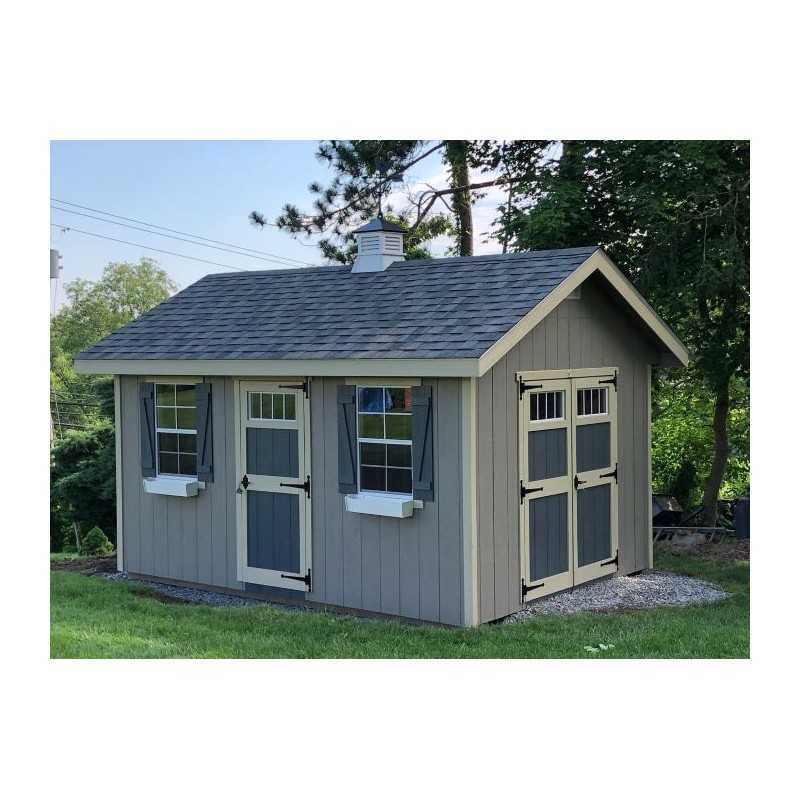

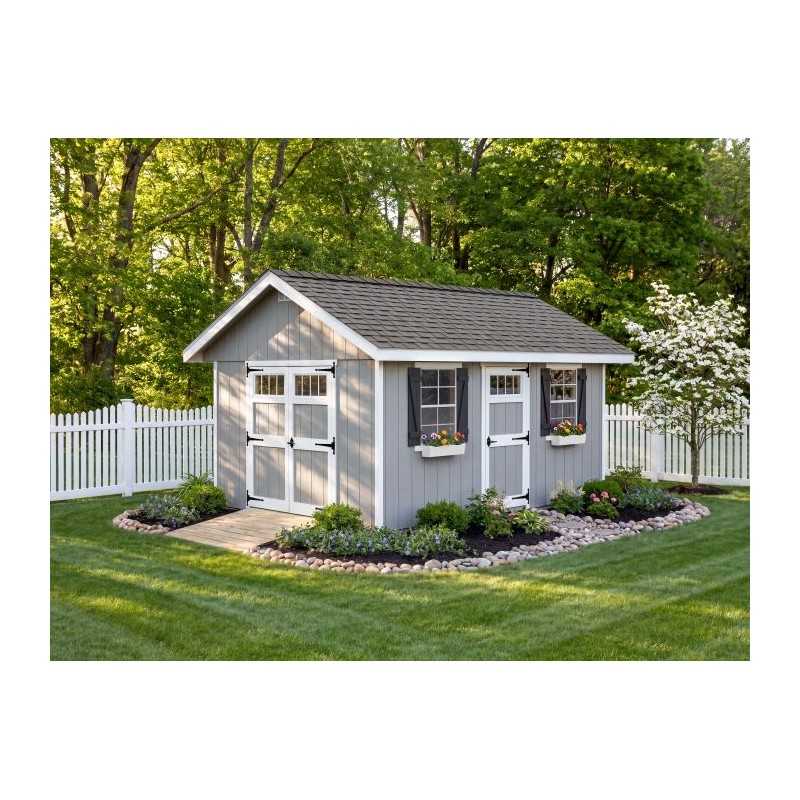

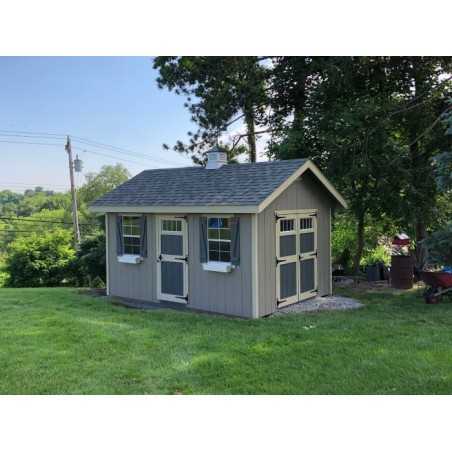

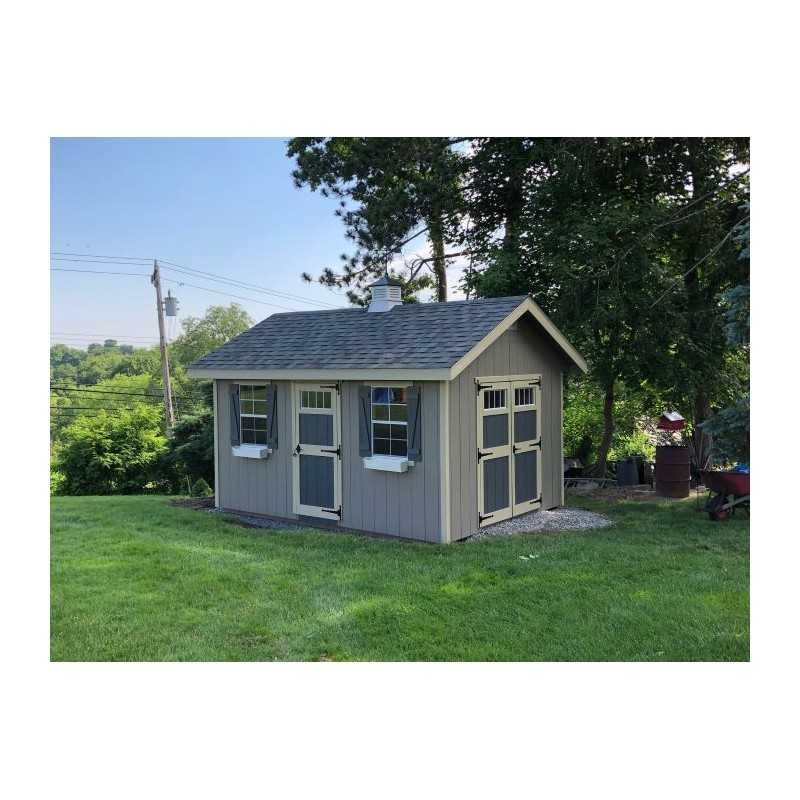

The EZ-Fit Riverside 10x16 Shed is designed to be easy to build, durable, and versatile. The kit includes pre-cut panelized walls, 24" O.C. wall studs, pre-hung doors, rafters, roof sheathing, trim, hardware, and fasteners, so most of the hard work is done for you. This shed features a 30" single side door and a 60" double door set for easy access, along with two operable 24×36" windows with screens and transom windows to let in natural light and fresh air. Decorative shutters and trim give the shed a polished, charming look.

EZ-Fit Riverside Shed Features

• Decorative Shutters: Add charm and dimension.
• Made-in-USA Locksets: Heavy-duty with decorative plates.
• 2" T-Hinges: Durable and smooth-operating.
• Double Top Plate: Strong, stiff walls and corners.
• Stronger, Straighter Walls: Built for lasting stability.
• Precision-Cut Studs & Extra Nailing Surface: Easier assembly and secure fit.
• Protective Trim: Adds contrast and shields fascia from weather.
• 60" Double Doors: Easy access; optional ramp available.

FEATURES

• High-Quality Amish Construction: Built with expert craftsmanship for durability and long-lasting performance.
• LP SmartSide Siding: Contractor-grade 7/16" primed engineered wood siding that resists rot, termites, woodpeckers, hail, humidity, and harsh weather.
• Strong Wall System: Panelized 4' wall sections with 24" O.C. studs, horizontal nailers, and a double top plate for stronger, straighter walls.
• Spacious Interior: Standard 6'6" wall height with optional 7' or 8' sidewalls for additional vertical space.
• Durable Roof Design: 6/12 pitch roof with aluminum drip edge, rated for 105 mph winds and 20 PSF snow load.
• Doors & Hardware: 60" double doors for easy access and a 30" side entry door, featuring decorative hinges and U.S.A.-made locksets for added security.
• Windows & Natural Light: Two 24" × 36" operable real-glass windows with aluminum frames, screens, and decorative shutters.
• Windows arrive factory-installed in the wall panels for convenience.
• Transom Windows: Provide additional natural light and enhance the shed’s appearance.
• Quality Trim: 6" fascia trim adds a finished look while protecting roof edges from the elements.
• Complete Shed Kit: Includes rafters, roof sheathing, pre-hung doors, trim, hardware, and fasteners for easy assembly.

Key Advantages

• 50-year prorated limited warranty
• Zinc Borate treatment for extra protection
• Resistant to fungal decay and termite damage
• Smooth, attractive interior overlay
• Primed and ready for paint

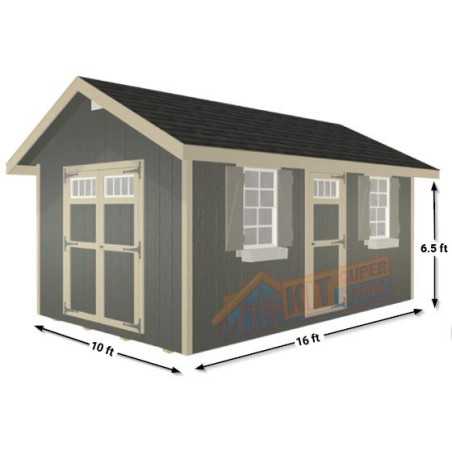

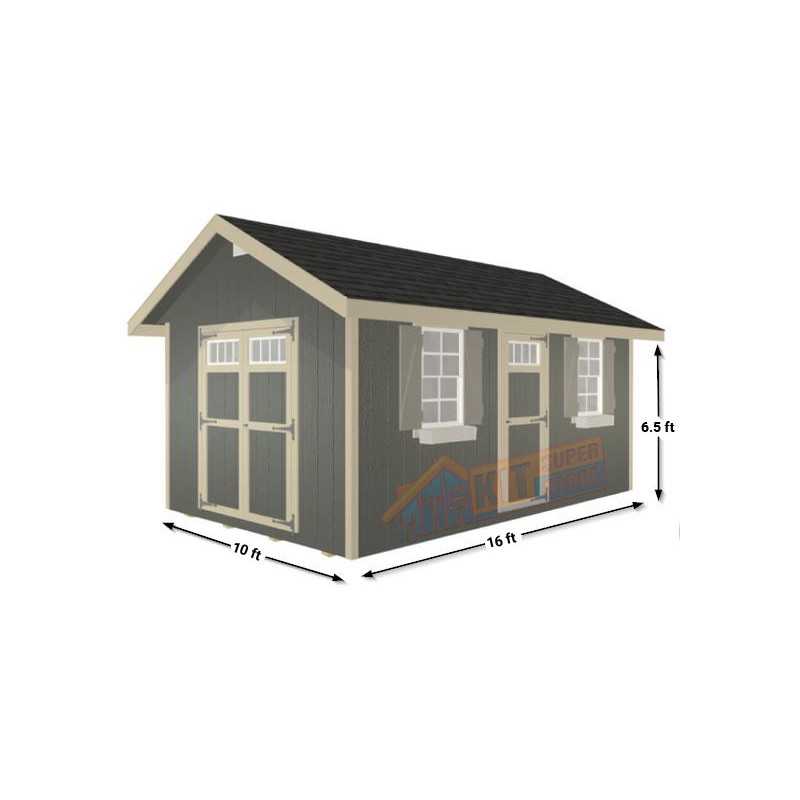

SPECIFICATION:

Sidewall Height: 6ft 6inch
Overall Height: 10ft 3inch
Roof Pitch: 6 inch
Windows and Shutters: 24" x 36"
Single Door: 30-inch wide
Double Door: 60 inch wide
Snowload: 20 psf
Wind Rating: 105 mph
Pallet Dimensions: 50 x 82 x 74; 2,310 lbs (no floor)

Premium 2x4 Framing Construction

• Built from hand-selected 2x4 studs throughout
• Walls constructed with 2x4 studs spaced 24” on center
• Roof trusses built using durable 2x4 framing lumber
• Designed for strength, stability, and long-lasting performance

Provided by Owner: Not Included in the kit

• Shingles
• Paint
• Roof Drip Edge
• Floor (available for purchase)

SHIPPING AND DELIVERY

• Standard Delivery: Kit arrives in 1-2 large wooden crates.
• Liftgate & Pallet Jack Delivery: The driver unloads crates curbside or in an accessible area.

INSTALLATION NOTES

• Shingles / Metal Roofing and Paint are not Include
• Recommended slab size is ½" smaller than the shed dimensions to prevent water entry

OPTIONAL FLOOR KIT

• 4x4" treated runners.
• 2x4" SPF floor joists (16" o.c.).
• 3/4" high-quality LP ProStruct Flooring.

OPTIONAL RAMPS

• Includes two 24"x48" sections.
• Designed for use in sheds with wood floors or those built over concrete pads.

OPTIONAL FLOOR KIT
Complete wood floor kit designed to provide a strong, level foundation for your shed.

TRANSOM DOOR
The standard 60" door allows for easy access.

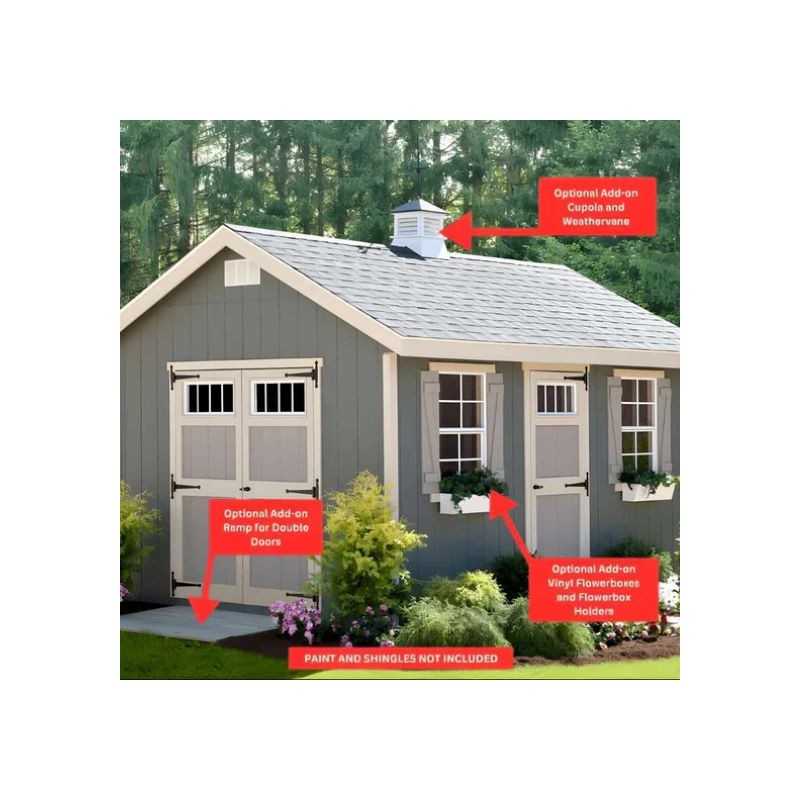

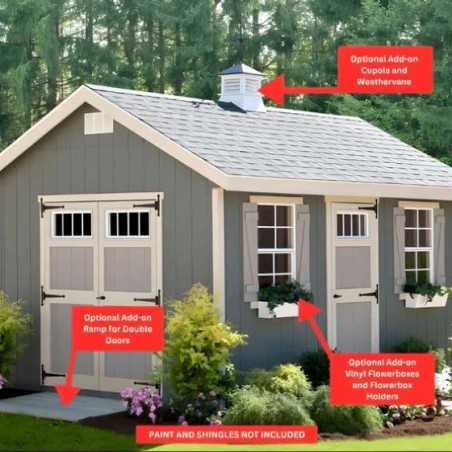

OPTIONAL WEATHERVANE

Make your shed even more unique with a durable weathervane. They are about 24 inches tall, and the cupola option must also be selected in order to mount the weathervane. Eagle, horse, and rooster designs are available.

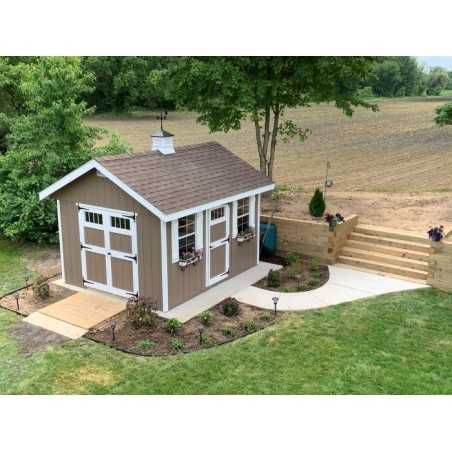

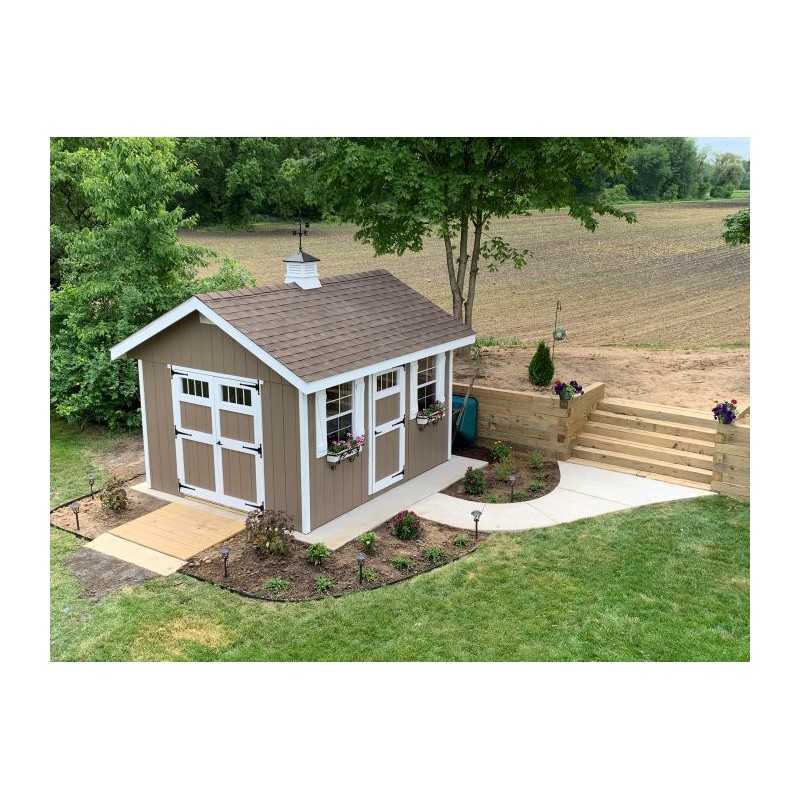

OPTIONAL CUPOLA

The decorative square cupola is available to enhance the look of your EZ-fit building. The cupola is 21 inches tall by 16 inches wide and 16 inches deep and weighs about 26 pounds. It is 44 inches high when paired with an optional weathervane. It is made of wood and is painted white with a black tin roof.

OPTIONAL VINYL FLOWER BOXES

Vinyl flower boxes are available for EZ-fit sheds. These enhance the look of the structure and provide a convenient place for flowers or other plants to grow. They are attached directly to the shed except when paired with a decorative flower box holder.

OPTIONAL FLOWER BOX HOLDER

Decorative flower box holders are available for EZ-fit sheds. They are made of wrought iron and allow for the flower box to sit in the holder without being attached to the shed itself. This allows the flower box to be easily removed for cleaning.
