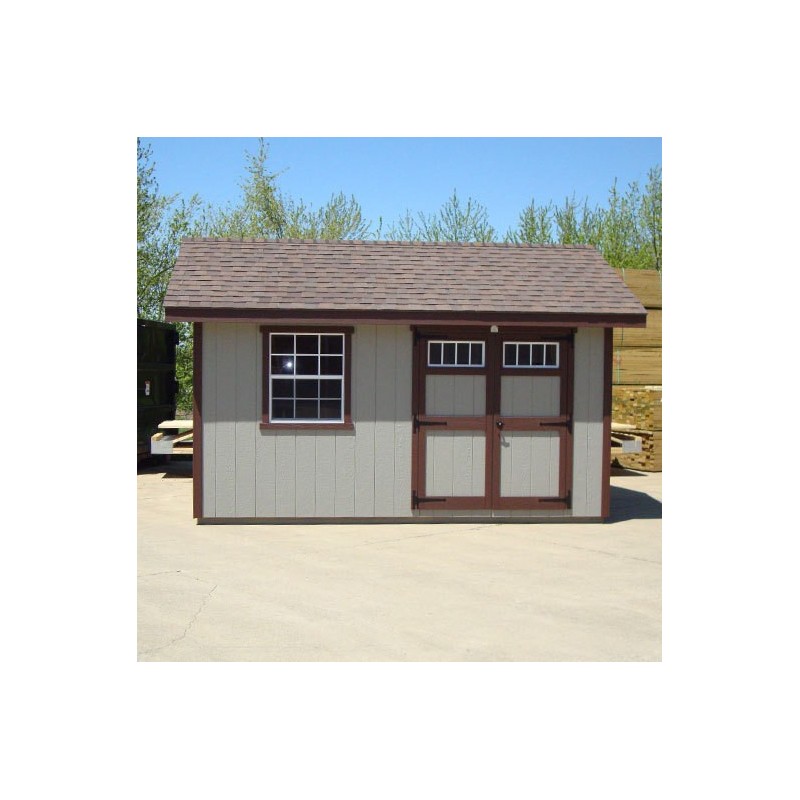

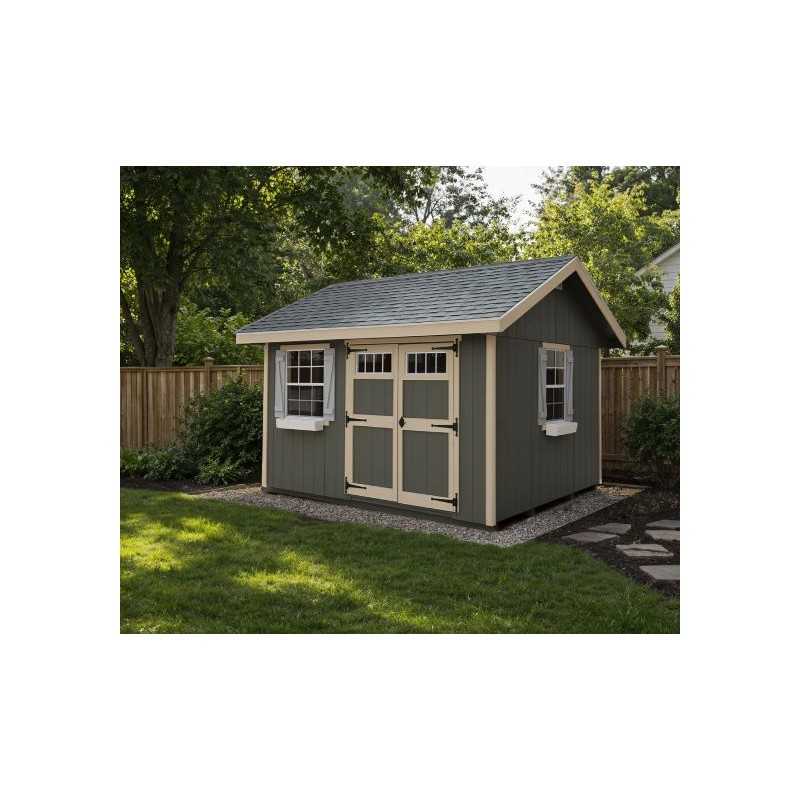

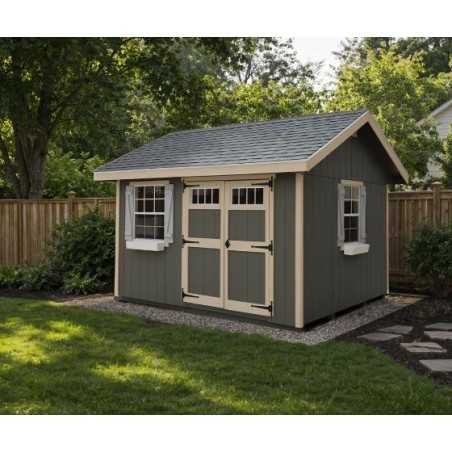

EZ-Fit Heritage 10x12 Outdoor Garden Wood Shed Kit (ez_heritage1012)

EZ-Fit Heritage 10x12 Outdoor Garden Wood Shed Kit (ez_heritage1012)

The EZ-Fit Heritage Shed Kit is designed to provide dependable and attractive storage for tools, lawn equipment, bicycles, or a small workspace. Its reinforced double top plate, solid rafters, and 4' panelized wall sections create a strong, stable structure with a 20 PSF snow load rating. The 7/16" primed SmartSide siding resists rot, termites, woodpeckers, and harsh weather, helping ensure long-lasting performance. The shed includes one 24"x36" and one 30"x36" screened window for natural light and ventilation, along with 60" wide double doors for easy access to larger items. Decorative shutters, durable hardware, and 6" fascia trim add a clean, finished appearance. With 6'6" wall height, a 6/12 roof pitch, and pre-assembled panels for faster setup, this shed combines strength, functionality, and timeless design.

FEATURES

Durable Constructions

• Double Top Plate: Creates stiff walls and strong corners for superior stability.
• 4' Panelized Wall Sections: Straighter, stronger walls with increased nailing surface.
• Snow Load Rating: 20 PSF for reliable performance.
• Solid Rafters: High-quality rafters provide durable roof support.
• 7/16" Primed SmartSide Siding: Resists rot, termites, woodpeckers, and harsh weather.
• Precision-Cut Wall Studs: Notched studs ensure consistent strength and alignment.

Functional And Stylish Details:

• Windows: One 24"x36" and one 30"x36" window with screens for light and ventilation.
• Shutters & Trim: Decorative shutters and 6" fascia trim add dimension and curb appeal.
  Doors & Hardware: 60" wide double doors with optional ramp, 12" T-hinges with bushings, and U.S.-made lockset with decorative plate.

Spacious Interior

• Wall Height: 6'6" for comfortable headroom.
• Roof Pitch: 6/12 for balanced ceiling and effective water runoff.

Pre- Assembled Panels

• Delivered with siding pre-attached to 4' wall panels for quick and easy assembly.

SMARTSIDE SIDING

SmartSide siding combines the natural beauty of wood with the strength and durability of engineered wood. Thanks to SmartGuard technology, it resists rot, termites, woodpeckers, hail, and extreme weather, making it perfect for long-lasting performance in any climate. All of our buildings come with SmartSide siding as a standard feature.

Key Advantages

• 50-year prorated limited warranty
• Zinc Borate treatment for extra protection
• Resistant to fungal decay and termite damage
• Smooth, attractive interior overlay
• Primed and ready for paint

SPECIFICATION:

Sidewall Height: 6ft 6inch
Overall Height: 10ft 3inch
Roof Pitch: 6 inch
Windows and Shutters: 30" x 36" ; 24" x 36"
Single Door: 30-inch wide
Double Door: 60 inch wide
Snowload: 20 psf
Wind Rating: 105 mph
Pallet Dimensions: 50 x 82 x 62; 1920lb (no floor)

Premium 2x4 Framing Construction

• Built from hand-selected 2x4 studs throughout
• Walls constructed with 2x4 studs spaced 24” on center
• Roof trusses built using durable 2x4 framing lumber
• Designed for strength, stability, and long-lasting performance

Provided by Owner: Not Included in the kit

• Shingles
• Paint
• Roof Drip Edge
• Floor (available for purchase)

SHIPPING AND DELIVERY

• Standard Delivery: Kit arrives in 1-2 large wooden crates.
• Liftgate & Pallet Jack Delivery: The driver unloads crates curbside or in an accessible area.

INSTALLATION NOTES

• Shingles / Metal Roofing and Paint are not Include
• Recommended slab size is ½" smaller than the shed dimensions to prevent water entry

OPTIONAL FLOOR KIT

• 4x4" treated runners.
• 2x4" SPF floor joists (16" o.c.).
• 3/4" high-quality LP ProStruct Flooring.

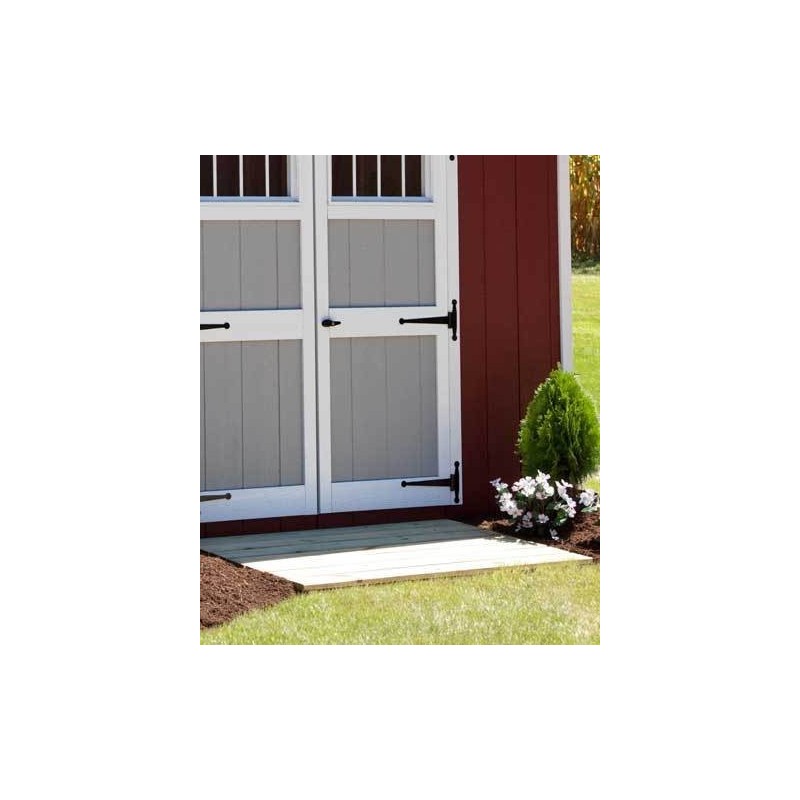

OPTIONAL RAMPS

• Includes two 24"x48" sections.
• Designed for use in sheds with wood floors or those built over concrete pads.

OPTIONAL FLOOR KIT
Complete wood floor kit designed to provide a strong, level foundation for your shed.

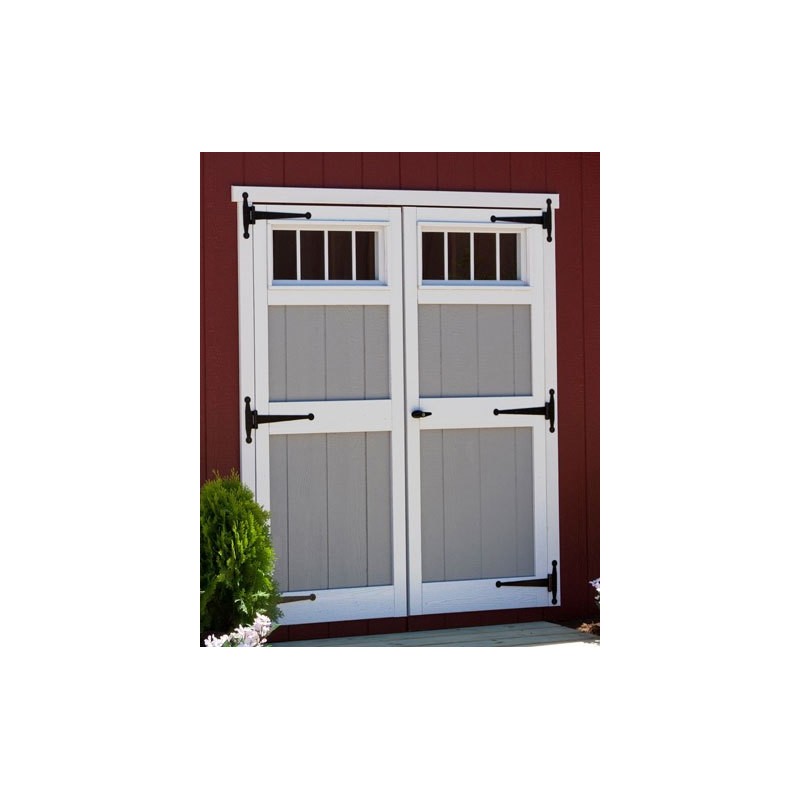

TRANSOM DOOR
The standard 60" door allows for easy access.

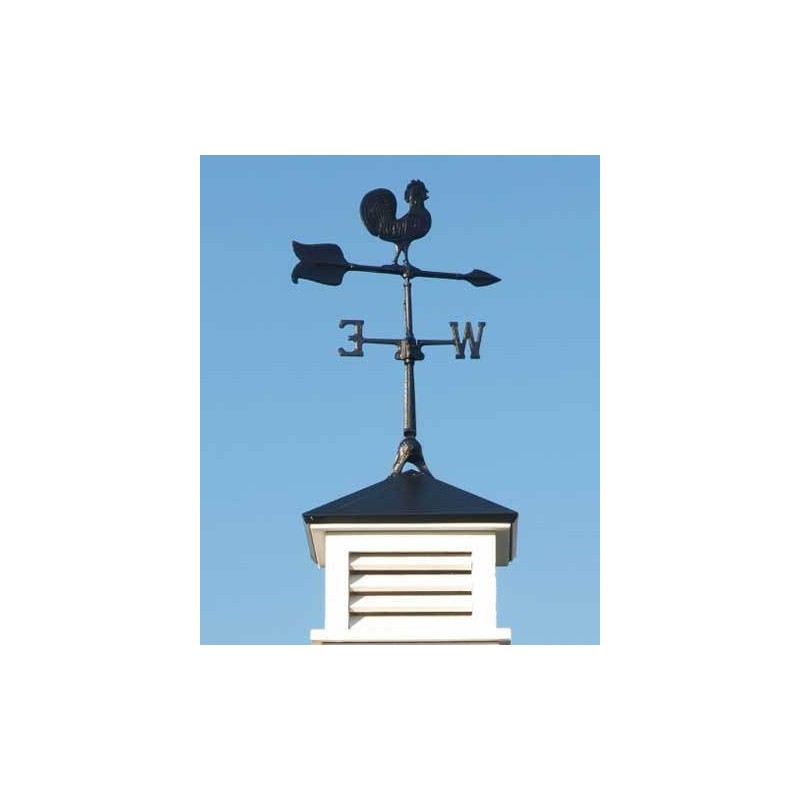

OPTIONAL WEATHERVANE

Make your shed even more unique with a durable weathervane. They are about 24 inches tall, and the cupola option must also be selected in order to mount the weathervane. Eagle, horse, and rooster designs are available.

OPTIONAL CUPOLA

The decorative square cupola is available to enhance the look of your EZ-fit building. The cupola is 21 inches tall by 16 inches wide and 16 inches deep and weighs about 26 pounds. It is 44 inches high when paired with an optional weathervane. It is made of wood and is painted white with a black tin roof.

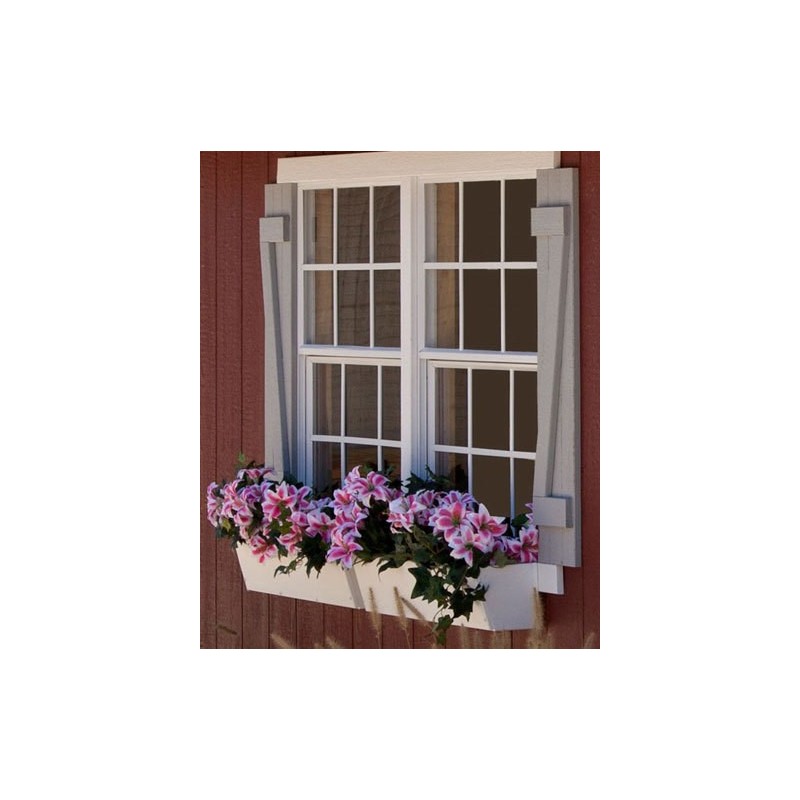

OPTIONAL VINYL FLOWER BOXES

Vinyl flower boxes are available for EZ-fit sheds. These enhance the look of the structure and provide a convenient place for flowers or other plants to grow. They are attached directly to the shed except when paired with a decorative flower box holder.

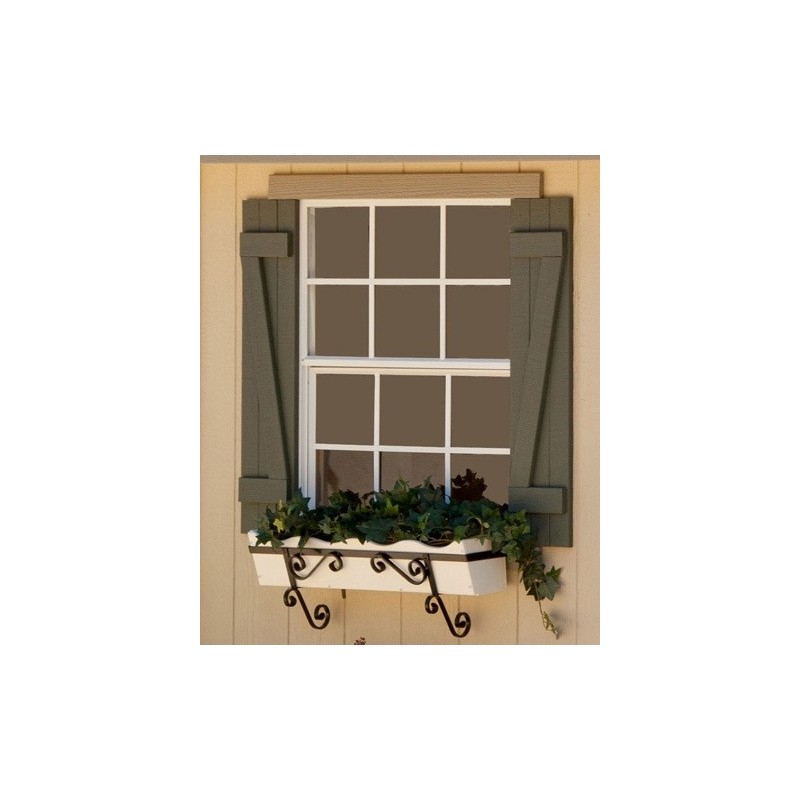

OPTIONAL FLOWER BOX HOLDER

Decorative flower box holders are available for EZ-fit sheds. They are made of wrought iron and allow for the flower box to sit in the holder without being attached to the shed itself. This allows the flower box to be easily removed for cleaning.
