Rhino Shelter Barn -12'W x 20'L x 12'H - Gray (model PB122012BGY)

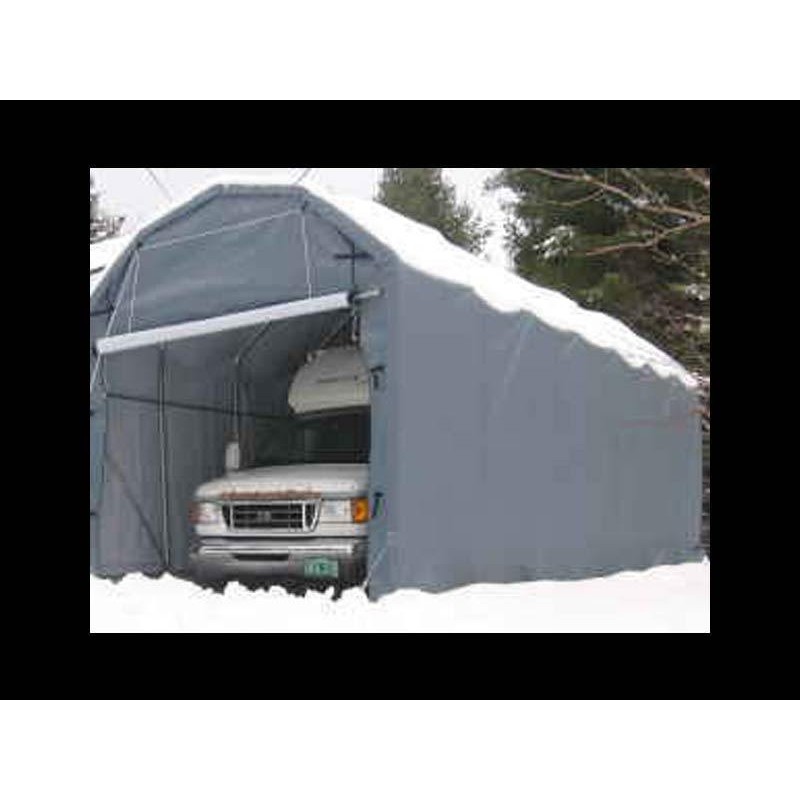

A 12' high Barn unit is an effective solution to store anything that requires a lot of height. Despite the added height, a barn unit fares well in snowy conditions thanks to additional arches that are available. The arches also have adjustable legs, so that the barn unit can be assembled on an uneven surface and still remain stable.

Free Shipping No Tax

PB122012BGY

New product

Retail: $2,639.99

Discount: -$880.00

$1,759.99

OR

price match

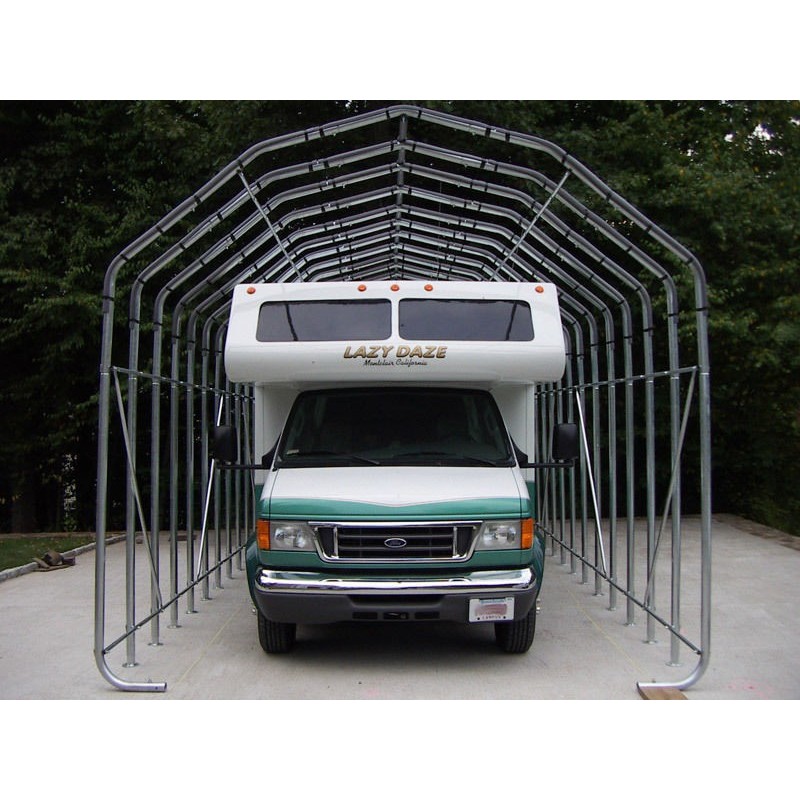

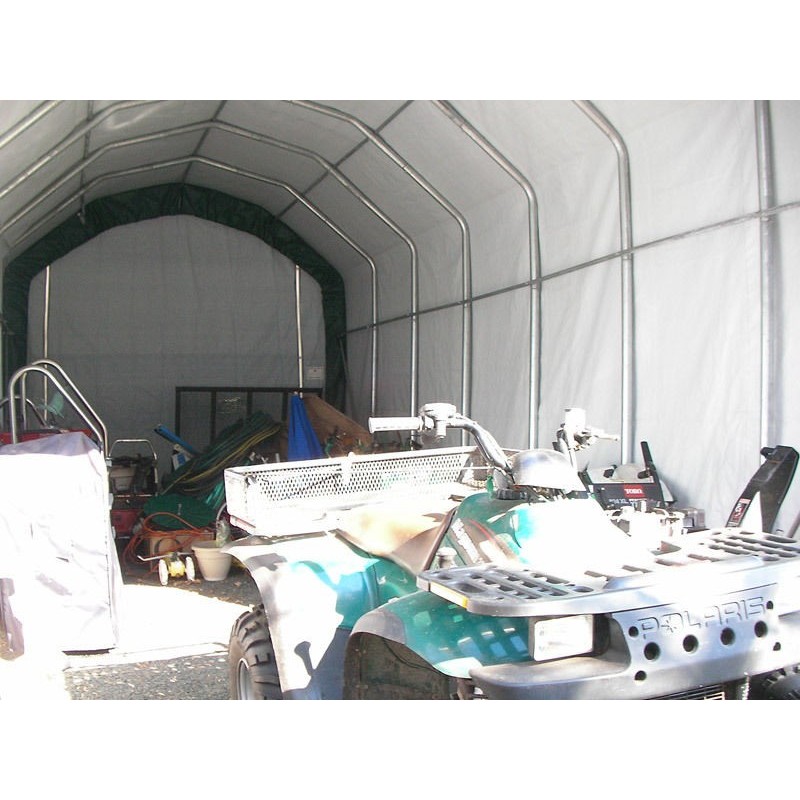

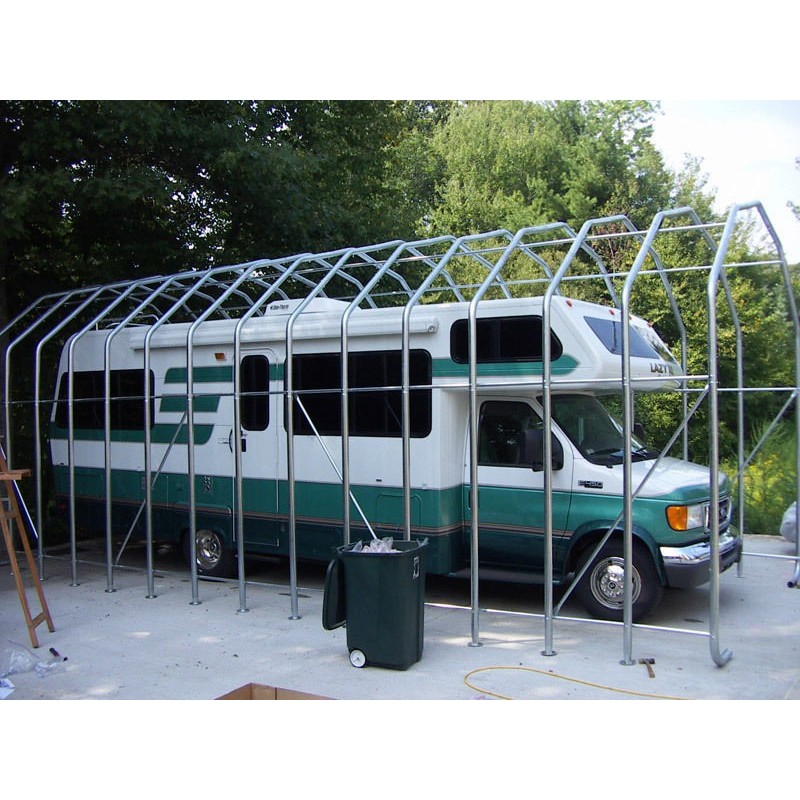

The additional height of a barn unit means it can easily accommodate an RV or caravan. The large workspace on offer and the excellent protection provided by the shelter makes it an excellent place to have an outdoor workshop. The centre-ridge roofline ensures that height is not an issue, with extra space along the side enclosures an added benefit.

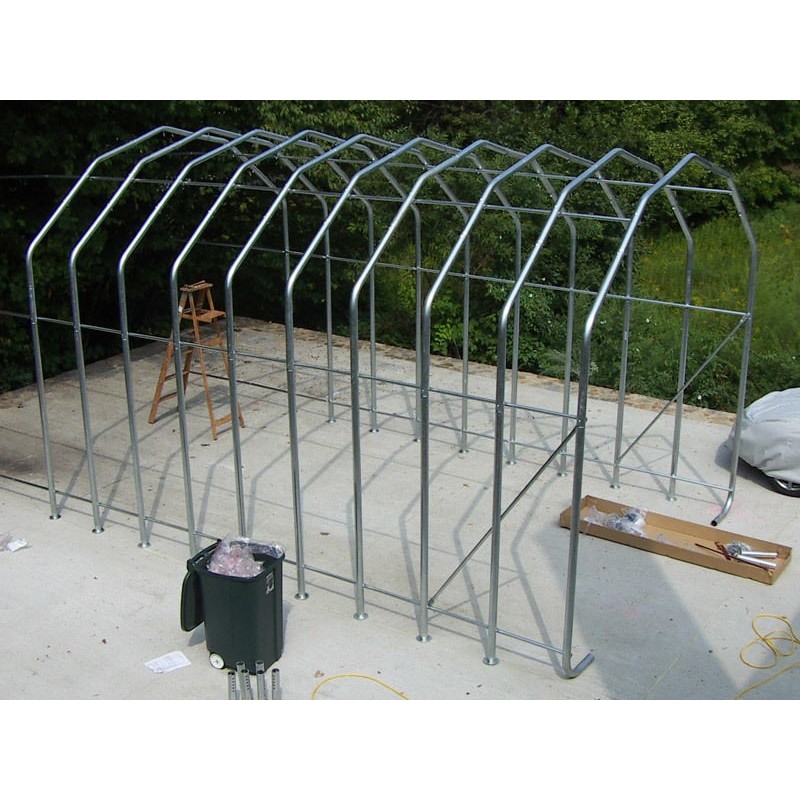

Assembling a Rhino Shelter requires minimal effort and tools. Two people can assemble the storage shed within an hour. The frame of the shed is designed in a specific manner, so that no cutting or drilling is required.

Pipe Diagram

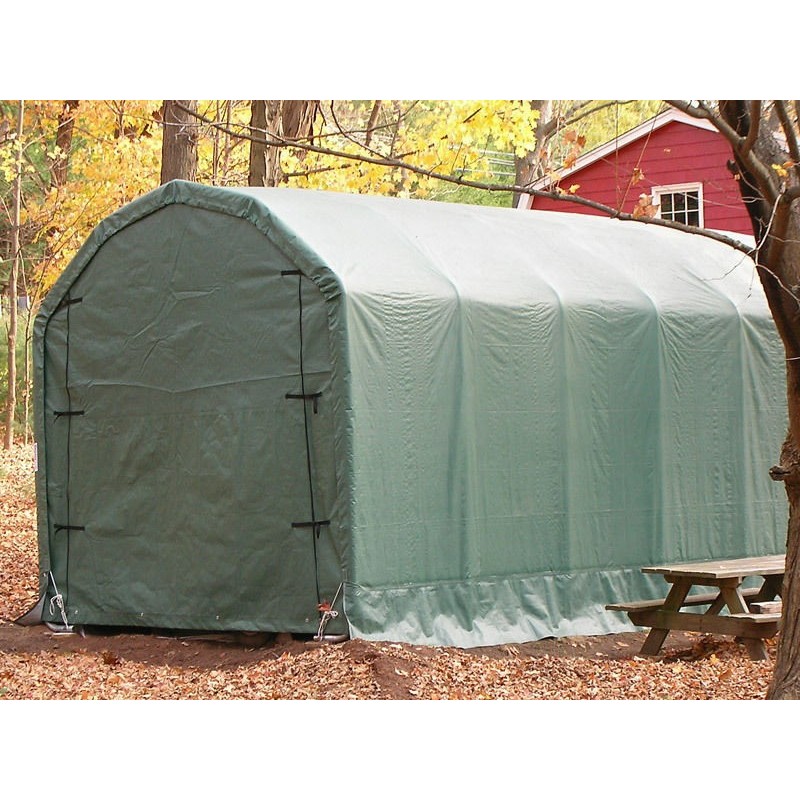

The shelter is made using rugged and long-lasting industrial grade 10oz. fabric and is available in two distinct colours. The entire cover, including doors, are constructed with a CPAI-84 rated Poly with woven backing, which is UV resistant and fire retardant. The outer and inner layers sandwich a special layer in between called Inner Black Scrim. This layer has a coating that prevents any sunlight from infiltrating the material. All the components for the frame are manufactured using galvanized steel.

fabric diagram

Ratchet straps come standard with Rhino Shelters. The shelter cover never loosens or sags, thanks to the strong webbing material used in the ratchet strap. The tight fit allows the ratchet straps to withstand much higher snow loads than ordinary rope. Every door contains a pouch to accommodate a pole and grommets. Earth anchors and 36" drive rods come with the package.

Ratchet Strap

Exclusive Barn Style Features

  • Heavy Duty Galvanized Finish on All Steel Frame
  • Ratchet Straps for a Drum Tight Fit
  • Wind Brace Support on Each Corner
  • Two (2) Triple Zipper Doors
  • One (1) Roll-Up Door Kit
  • Complete anchoring system included
  • 1CPAI-84 Polyethylene Fabric Backed Cover and Doors
  • 588 lbs. Shipped in Seven (7) Boxes Via Motor Freight

SPECIFICATIONS

    Anchors Fourteen (14) 36" Anchors with U-Bolts & 36" Drive Rod
    Arches Eight (8) on 48" spacing: 2-3/8' galvanized frame members
    Available Colors Forest Green, Gray
    Fire Retardant Standard Main Cover & Doors meet CPAI -84 Section 5
    Interior Color White
    Main Cover UV Protected 24 mm, fabric-backed polyethylene, 10 oz weight
    Nominal Size 12' Width x 20' Length x 12' Height
    Shipping Method Shipped via Motor Freight Only
    Shipping Weight 588 lbs. shipped in seven (7) boxes
    Standard End Door Size 10' Width X 9'6" Height: Double zipper door at each end

Box Dimensions

Box 1: 79" Long x 12" Wide x 8" High
Box 2:
82" Long x 23" Wide x 6" High
Box 3:
 49" Long x 22" Wide x 9" High
Box 4:
44" Long x 18" Wide x 8" High
Box 5:
48" Long x 14" Wide x 6" High
Box 6:
85" Long x 18" Wide x 8" High
Box 7:
82" Long x 19" Wide x 9" High
