Palram - Canopia Arizona Wave 5000 Carport Kit (HG9105)

Palram - Canopia Arizona Wave 5000 Carport Kit (HG9105)

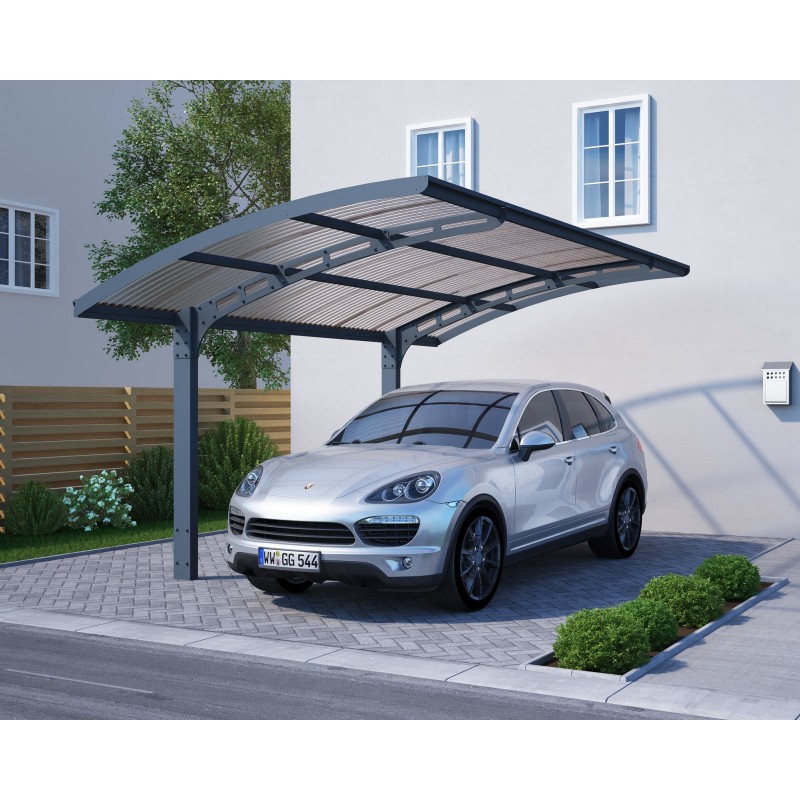

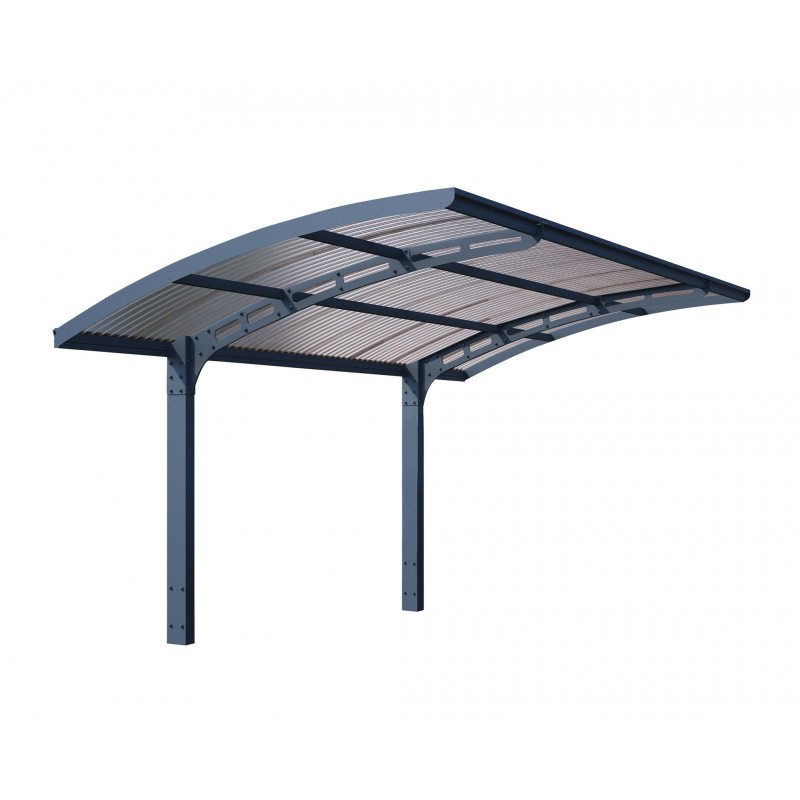

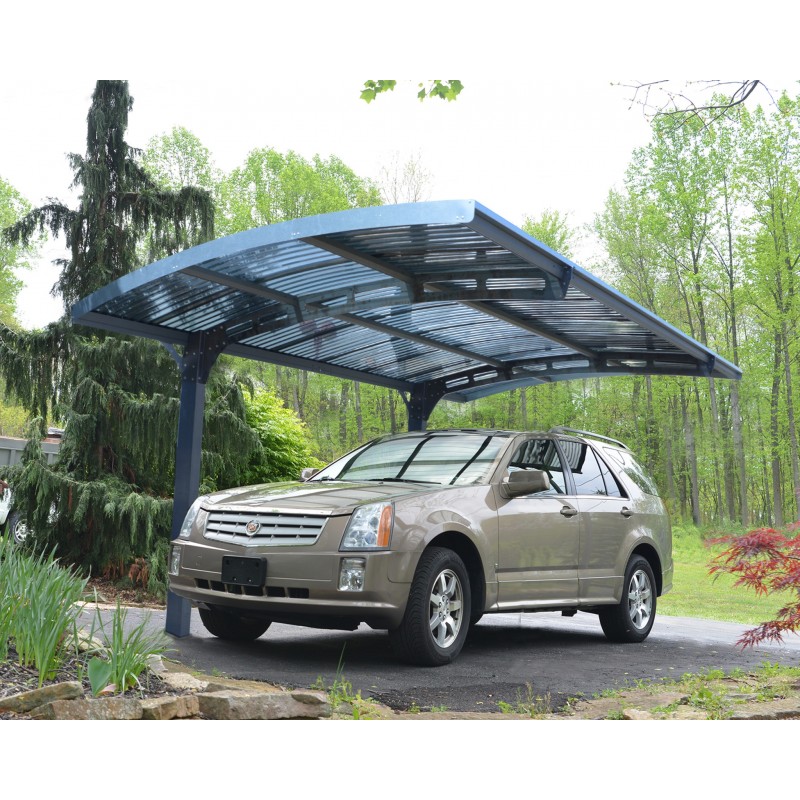

The Arizona 5000 Wave combines function and modern design protecting the harshest elements.  Its unique and robust design makes it a wonderful carport and outdoor structure, with the two-legged design allowing easy access from any side.  The gray frame and solar gray roofing materials were created to withstand harsh weather conditions; the polycarbonate panels allow partially transmitted natural sunlight while still providing sufficient shading and blocking harmful UV rays.  Once installed, the Arizona Carport will provide your family protection from the elements for years to come with its durable materials that are rust and maintenance-free.  BEFORE ORDERING – Be sure to check your local building and zoning codes & guidelines and ensure that any/all appropriate permits have been acquired.

FEATURES:

• Check your local building and zoning codes & guidelines and ensure that any/all appropriate permits have been acquired.
• Multi-purpose as a carport or a patio cover

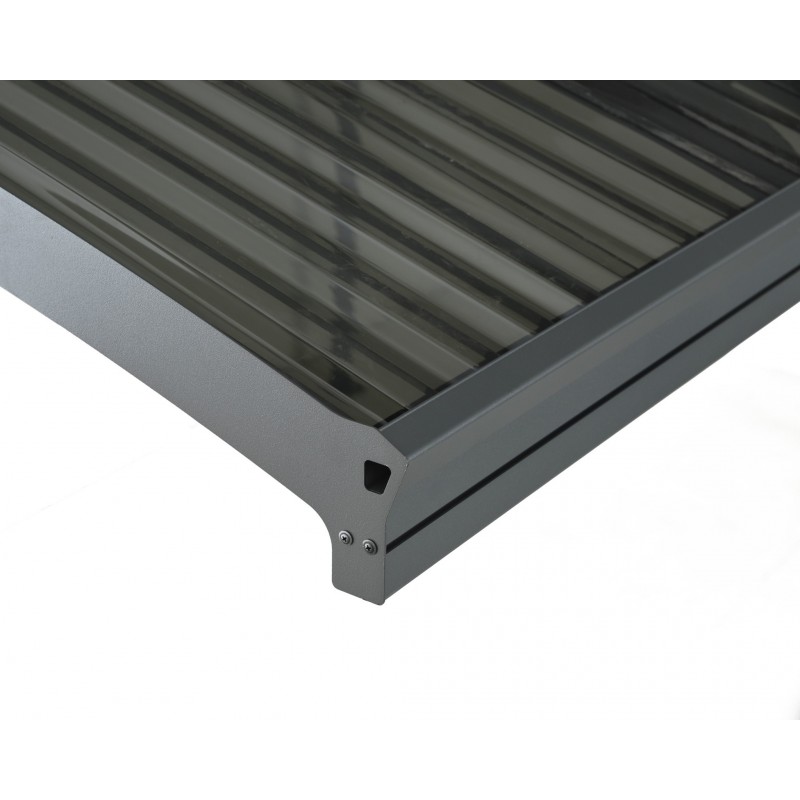

• Virtually unbreakable, 100% UV protected, Clear polycarbonate panels, 2mm thick
• Polycarbonate roof panels maintain their integrity, provide complete UV blockage, and are 100% UV-protected

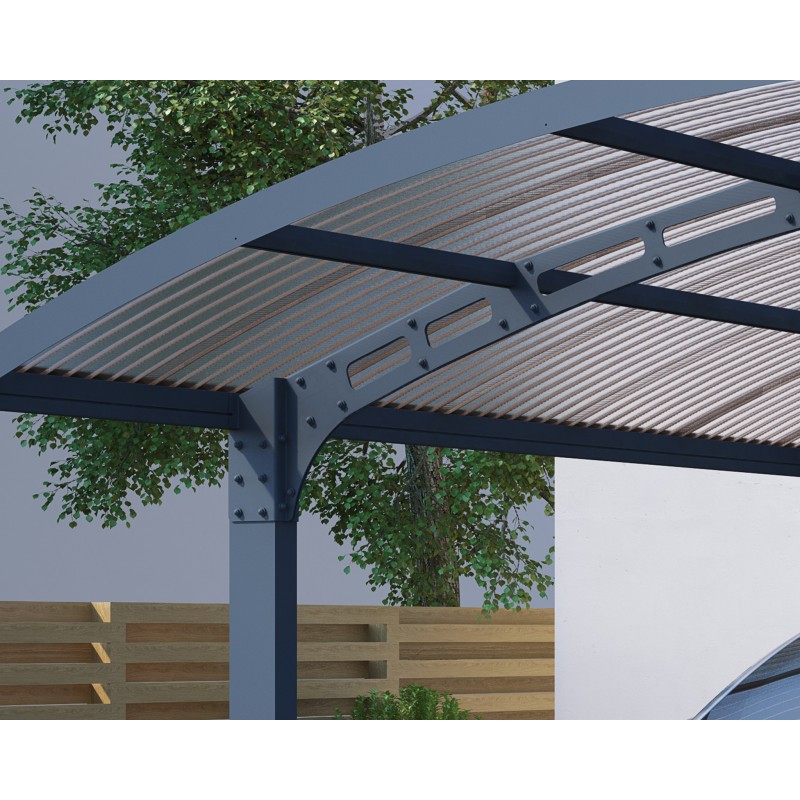

• Powder-coated rust-resistant frame constructed with heavy-duty aluminum & laser cut galvanized steel connectors

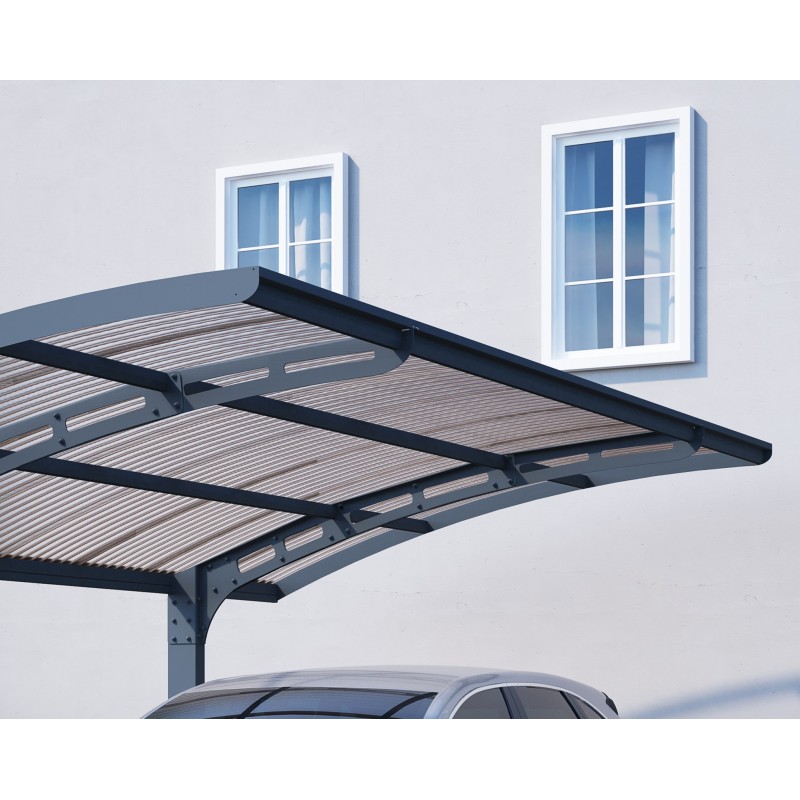

• Integrated rain gutter to control rain drainage

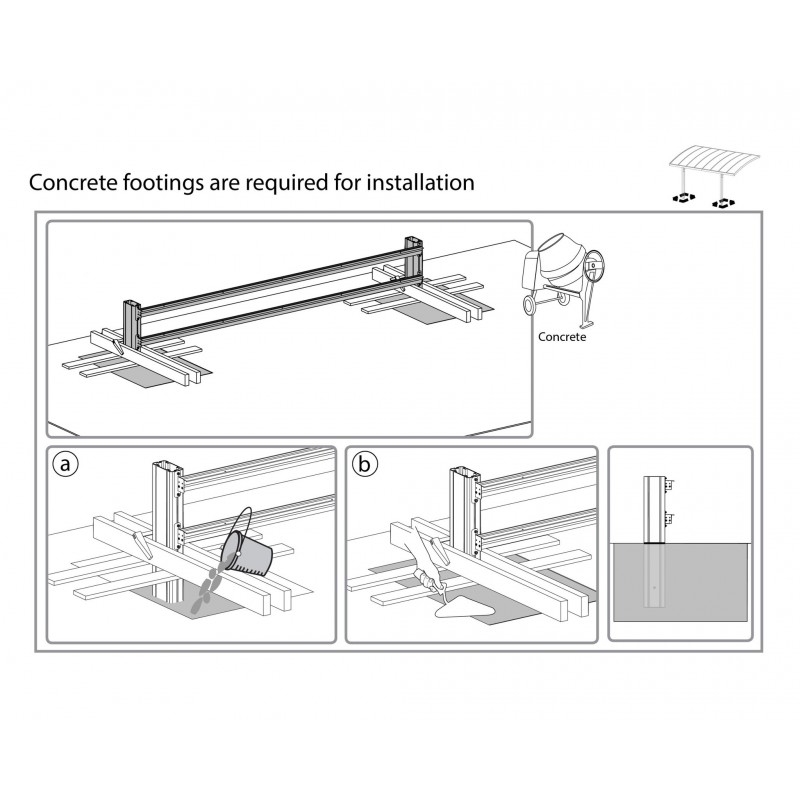

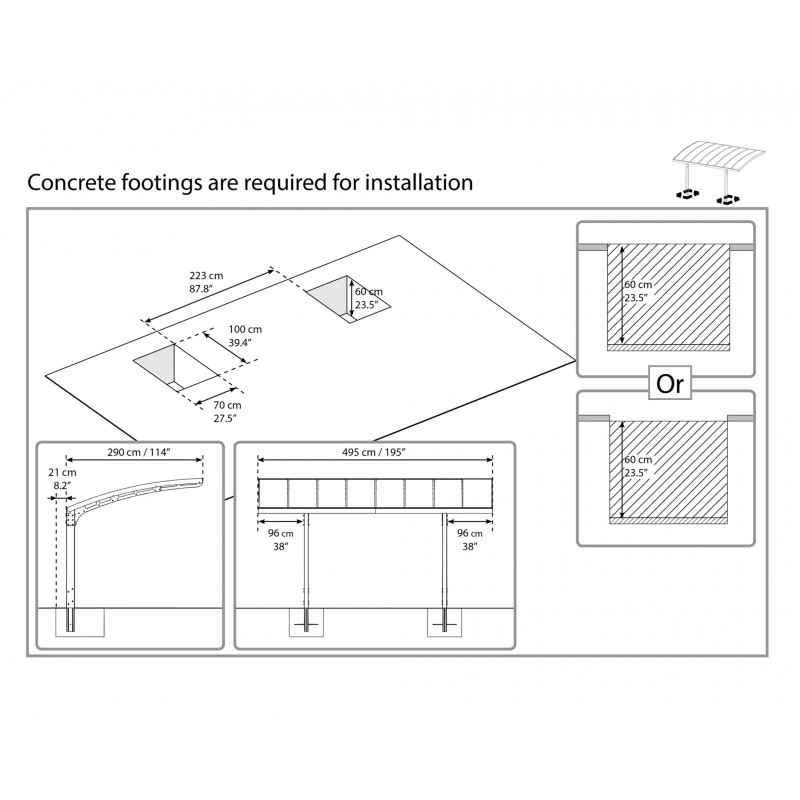

• Concrete footings are required for installation
• 10 Year limited warranty and US-based customer support
• Snow load of 15.4 lbs s/f and wind load of 75 mph

SPECIFICATIONS:
Dimensions (ft, rounded): 10 x 16 x 9

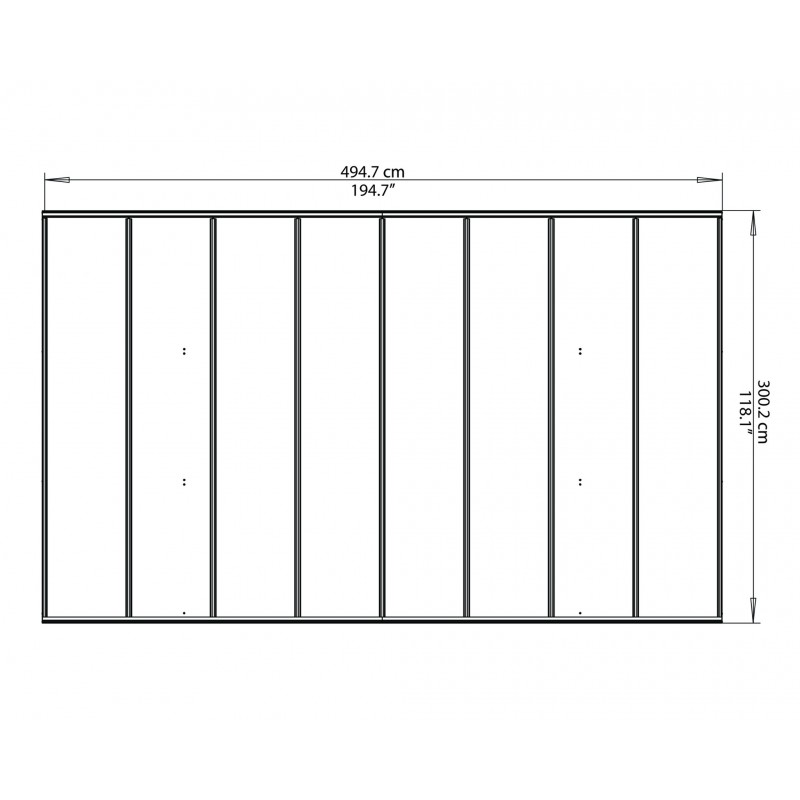

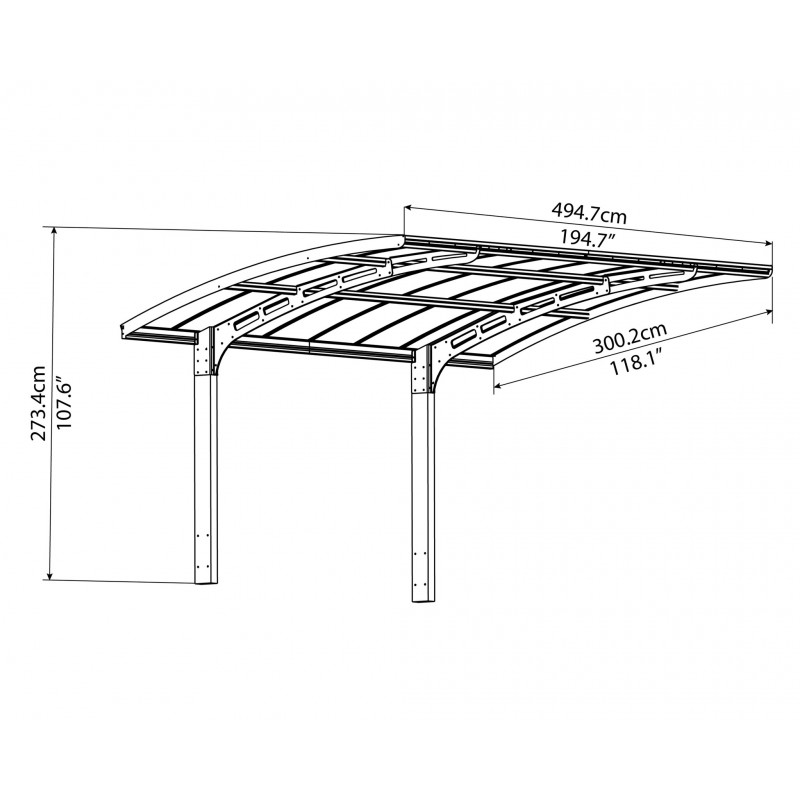

Dimensions: 118.2"L x 194.8"W x 107.7"H
Design: Corrugated Polycarbonate Panels
Head Room: 8.7 ft
Total Product Weight: 405.4
Color: Solar Gray
Roof Color: Gray tinted
Frame Material: Aluminum
Frame Color: Gray powder coated aluminum and galvanized steel
Ship Method: LTL Motor Freight Only, Curbside Tailgate Delivery
Total Box: 2
Box 1: 116.5"L x 28.7"W x 4.1"H weight: 260.2
Box 2: 116.5"L x 28.7"W x 5.9"H weight: 165.4

SHIPPING

Curbside Tailgate Delivery – No Lift Gate Service

A type of LTL Freight delivery most commonly used by carriers for oversized freight that cannot fit on a lift gate.

For this type of delivery, customers are required to prepare at least 2–3 people to assist with unloading. If the item is too heavy, the cartons can be unstrapped from the pallet and carried one by one. If they are still too heavy, the cartons can be opened at the end and larger pieces can be slid out to lighten the load.

The drop-off point is at the street level, as shown in the image BELOW.
