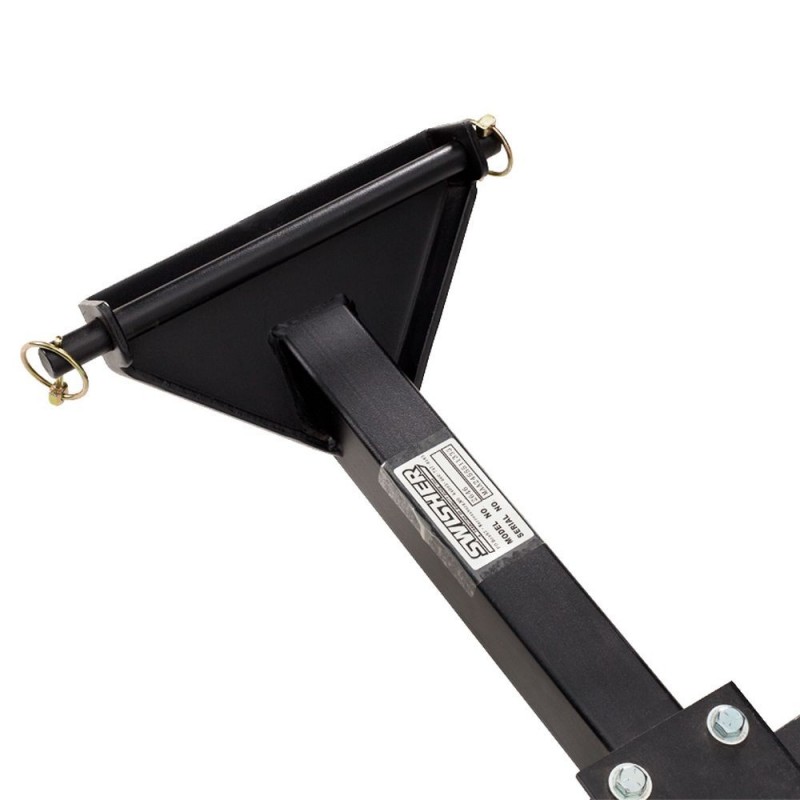

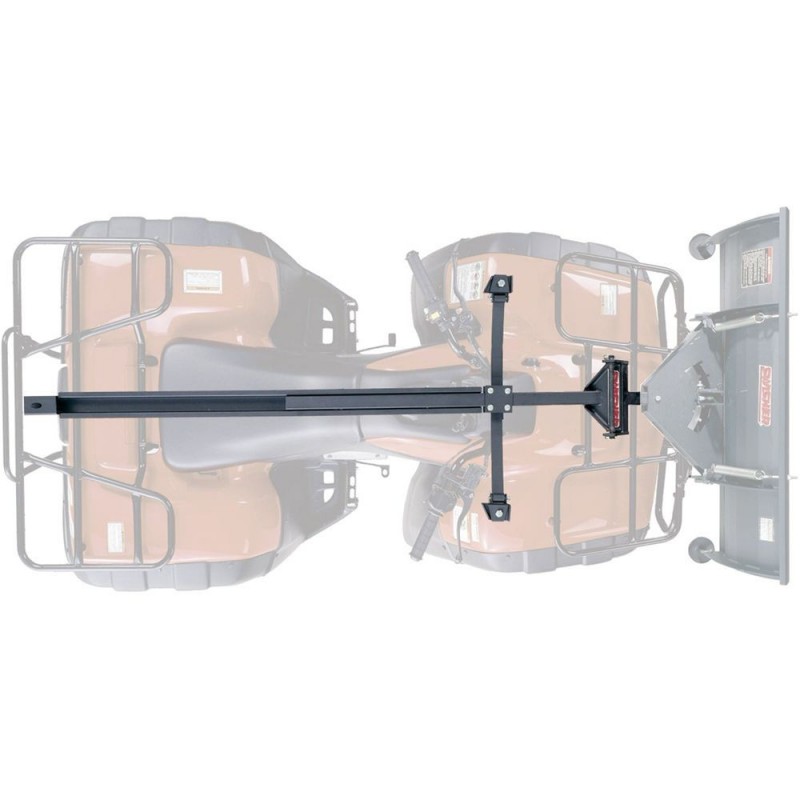

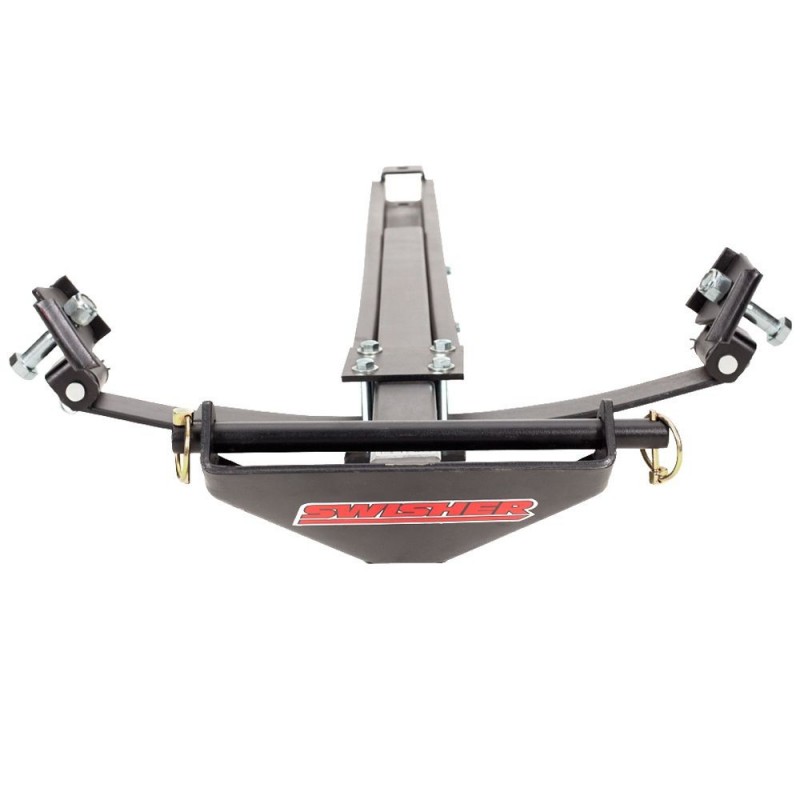

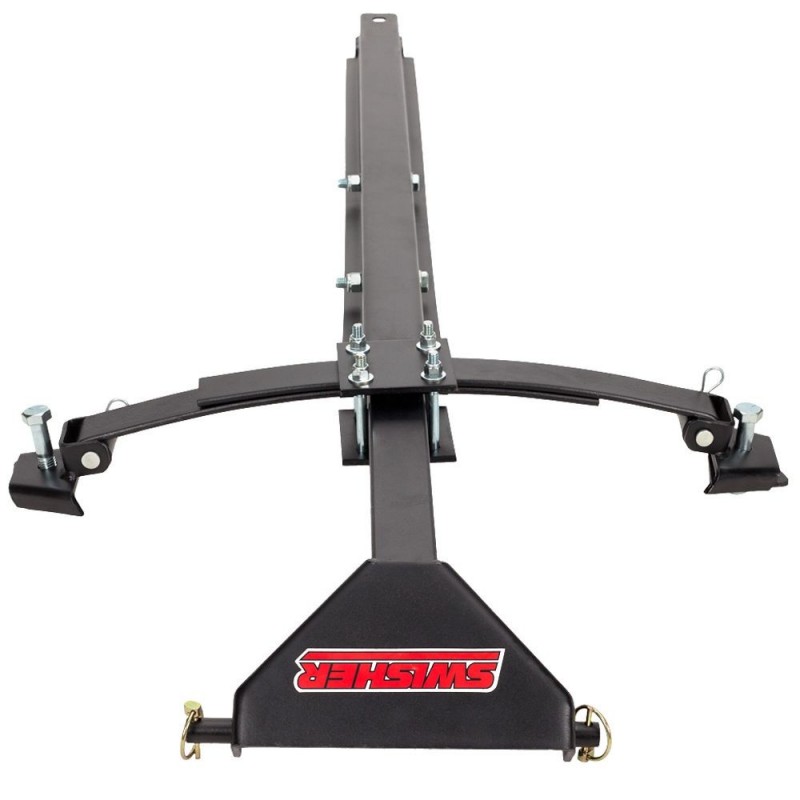

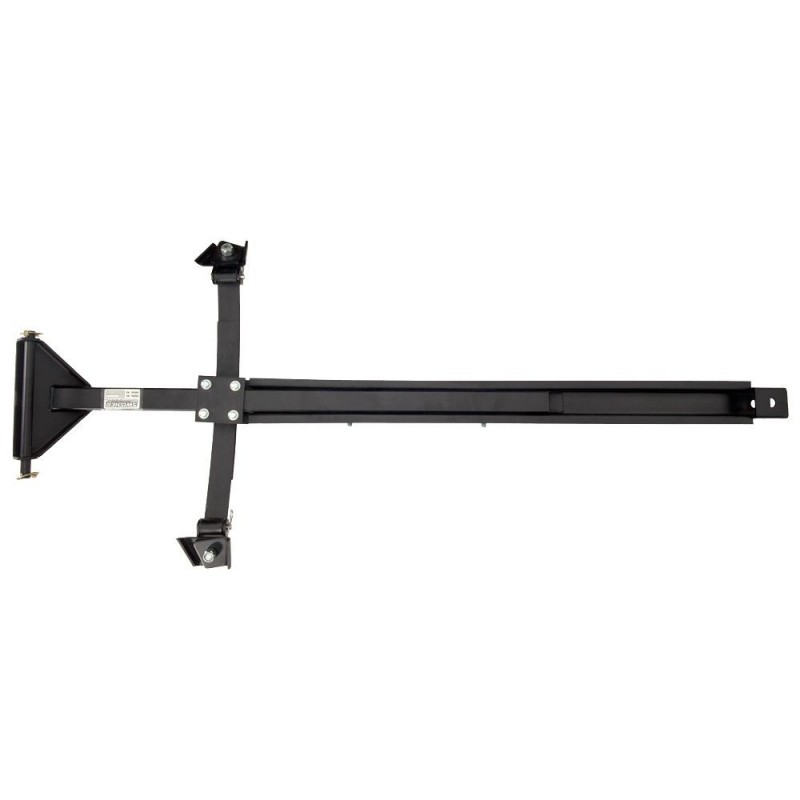

THIS IS THE MOUNT KIT ONLY. THE PLOW BLADE IS NOT INCLUDED. The Swisher® ATV Universal Mounting Kit attaches to the rear hitch and front lower control arms of most ATVs. It's made from steel square tubing with a leaf spring design to help bolster the front suspension. Use the kit with Swisher's plow blades and dump bucket for fast changes between attachments. Remove the kit by simply removing the pins, leaving the brackets on the ATV for fast, simple future installations. Additional required mounts to be used in conjunction with the 2646 for Bombardier ATV models: #7668 Bombardier Outlander(A-arm mount) and Suzuki King Quad #2900 Mount extension for ATV's with a wheel base greater than 72"
Fits most ATV's

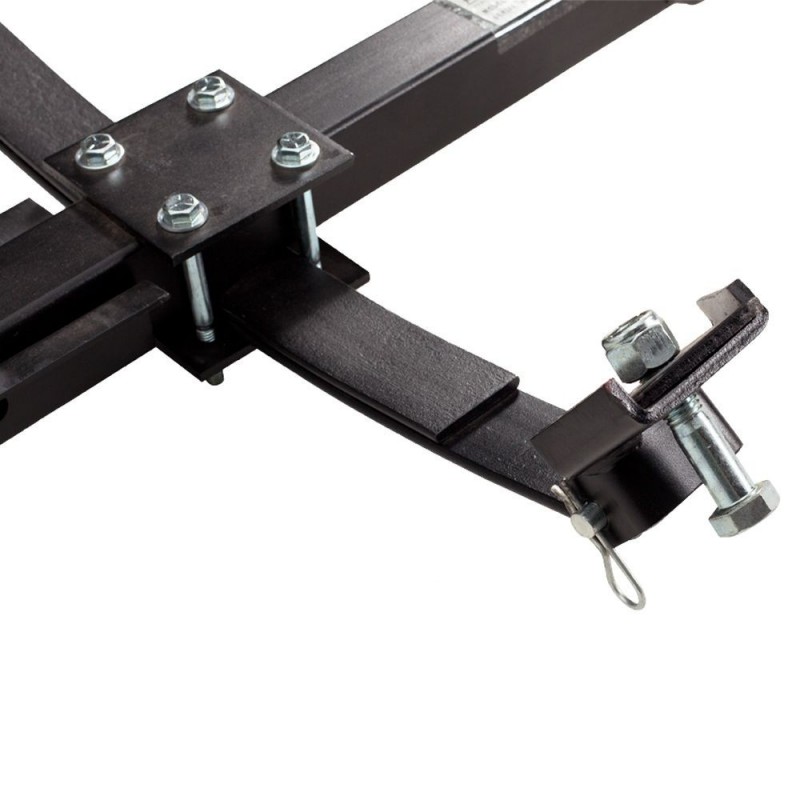

Leaf spring frame

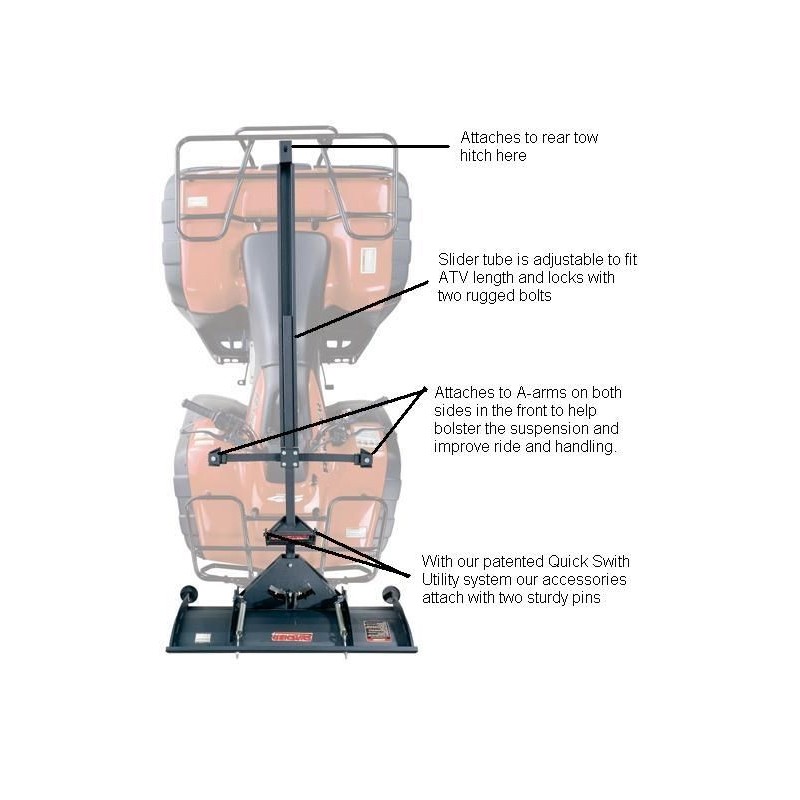

Attaches to rear hitch and front A-arms
Frame is super-duty steel square tubing
No ground clearance issues
Durable powder coat finish
Used in conjunction with Swisher Plow Blades or Swisher Dump Bucket
SPECIFICATIONS: Dimensions: 73.25 x 24.50 x 7 Inches Material: Steel Color: Black Item Weight: 45 lbs Warranty: 1 year limited warranty
The fit criteria is as follows... From the receiver hitch hole under the middle of the ATV to about 2 inches in front of the outermost round part of the tire should be no less than 63 inches If the measurement comes out to be greater than 73 inches the extension kit part number 2900 must be used in order ensure proper fit and strength of the Swisher Universal Mount Kit. • The Swisher Universal Mount kits are only to be used for ATVs with no smaller than a 350CC engine. This is not a UTV application for UTV application you must have 10260. • Independent Front Suspension with A-Arms • ATV must have rear tow hitch bracket • Distance from center hole in the hitch bracket to the front of the front tires must be at least 63” and not greater than 73” • Maximum distance between the leaf spring brackets (mounted to the front a-arms) is 32” assuming 4” of spring overlap at center of ATV between Spring Mounting Plates. • Minimum recommended ATV size is 350 cc • Minimum recommended ground clearance is 9”. FOR ANY QUESTIONS OR CONCERNS REGARDING THE APPLICATION TO YOUR MACHINE, PLEASE EMAIL email@example.com OR CALL 800-222-8183.
NOTE: FOR ANY QUESTIONS OR CONCERNS REGARDING THE APPLICATION TO YOUR MACHINE, PLEASE EMAIL firstname.lastname@example.org OR CALL 800-222-8183.
